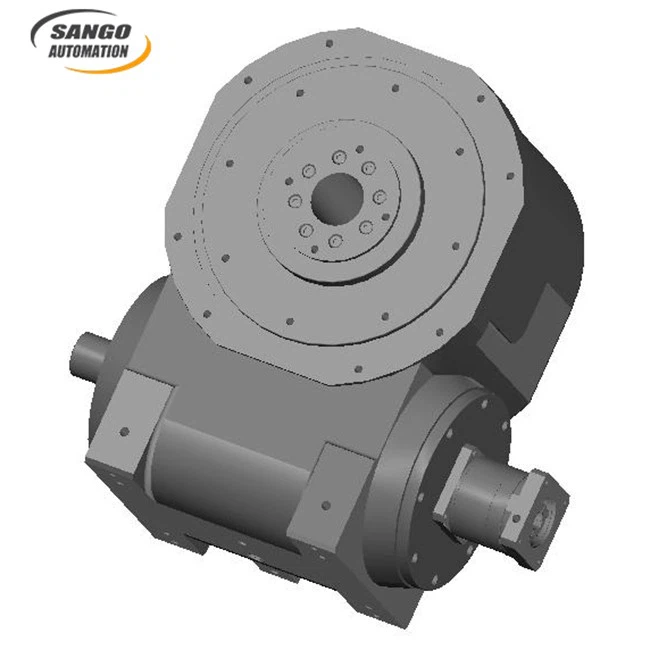

About Rotary Indexing Systems For Automotive Manufacturing
SANGO Automation designs precision rotary indexing systems trusted by leading automotive manufacturers worldwide. Our heavy-duty systems are engineered to handle the most demanding production environments, delivering reliable positioning for machining, welding, and assembly applications. With robust construction and smart integration capabilities, SANGO systems keep your automotive production lines running smoothly backed by decades of industry expertise and responsive technical support.
Rotary Indexing Systems for Automotive Manufacturing Features
Precision Positioning:
Standard: 2 arc-seconds
High-Accuracy Option: 1 arc-second.
Load Capacity:
Vertical Models: 5025,000 lbs.
Horizontal Models: 5010,000 lbs.
Drive Systems:
Servo motor (standard).
Direct drive (high-speed options).
Environmental Protection:
IP67 (standard).
Operating Temp: 20C to +60C.
Control Compatibility:
FANUC, Siemens, Mitsubishi, Allen-Bradley.
Types of Rotary Indexing Systems for Automotive Manufacturing
Servo-Driven Rotary Tables
Best for precision work like drilling engine blocks.
Holds position within 1 arc-second (about the width of a human hair at 10 meters).
Handles heavy parts up to 25,000 lbs.

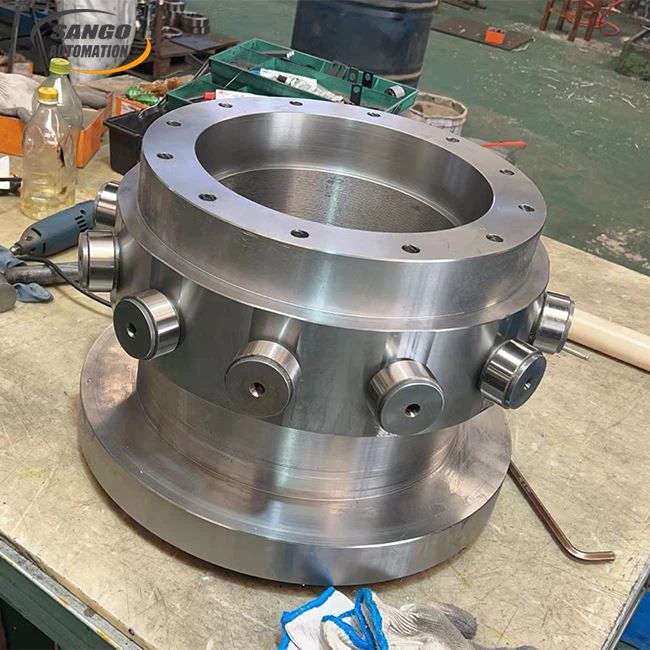

Cam Indexers
Perfect for fast, repetitive tasks.
Moves parts quickly between stations.
Lower cost for high-speed applications.
Direct-Drive Systems
Ultra-smooth rotation with no gear backlash.
Ideal for sensitive operations like laser welding.
Quick 0.5-second positioning.
Custom Multi-Axis Systems
Built for complex production lines.
Can rotate and tilt parts simultaneously.
Used in advanced EV battery assembly.
Applications of Rotary Indexing Systems for Automotive Manufacturing
High-Precision Servo Indexer
For: Machining centers, laser welding stations.
Example: Drilling 200 holes in a transmission case with 0.01mm repeatability.
Rugged Cam Indexers
For: High-speed palletizing, parts transfer.
Example: Rotating wheel hubs through 6 assembly stations at 45 cycles/minute.
Custom Multi-Axis Solutions
For: Complete production cells.
Example: 4-axis EV battery module line with integrated quality scanning.
FAQ
Q: What is a rotary indexing system used for in car manufacturing?
A: A rotary indexing system is a precise table that moves car parts from one station to another for assembly, machining, and inspection.
Q: What does a rotary indexing system do in car manufacturing?
A: A precise tool that turns parts to the exact spots they need to be in for machining, welding, and assembly in car production lines.
Q: What are the benefits of using rotary indexing systems in cars?
A: They give engine blocks, transmissions, and EV batteries precise, repeatable positioning.
Q: What kinds of rotary indexing systems work well for making cars?
A: Heavy-duty models that stand up straight.
Horizontal tables that move quickly.
Custom systems with more than one station.
Q: How accurate are rotary indexing systems for cars?
A: From 2 arc-seconds (standard) to 1 arc-second (high-precision).
