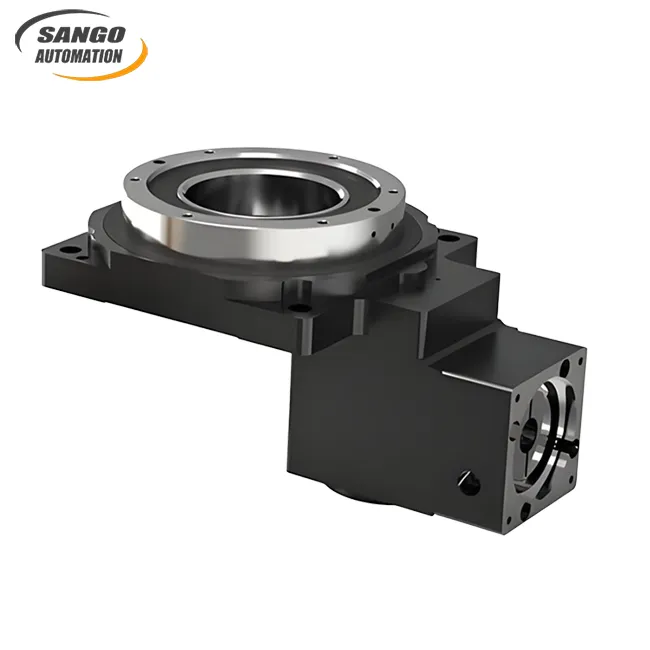

Rotary Indexing Table With Center Opening

The Rotary Indexing Table with Center Opening is a precision-engineered mechanical component designed to deliver accurate, repeatable rotational positioning for a wide range of industrial automation applications. Unlike standard rotary tables, its integrated center opening is tailored to simplify cable routing, workpiece feeding, and tool access, making it an ideal solution for industries where space optimization and operational efficiency are critical. Whether used in packaging, assembly, machining, or pharmaceutical production, this indexing table combines robust construction with flexible design to meet the demanding requirements of modern automated production lines. Its ability to maintain consistent precision even under high-load conditions ensures minimal downtime and improved overall productivity, making it a reliable choice for manufacturers looking to enhance their operational workflows.

Our Rotary Indexing Table with Center Opening is available in multiple models to accommodate diverse application needs, with key technical parameters engineered for optimal performance. The center opening diameter ranges from 28mm to 150mm, allowing flexible passage for cables, hoses, or workpieces of various sizes. Indexing precision ranges from 15 to 45 depending on the model, ensuring consistent and reliable performance in high-precision applications. The table supports axial forces up to 40,000N and radial forces up to 22,000N, with tilting torque capacities reaching 7000Nm for heavy-duty operations. All models feature oil-bath lubrication for maintenance-free operation and a service life of over 30,000 hours in intermittent use, reducing long-term operational costs. The gear ratio is customizable from 1:5 to 1:100, and the table is compatible with any brand of servo or stepper motor, offering flexibility in system integration.

One of the standout benefits of our Rotary Indexing Table with Center Opening is its space-saving design, which allows for seamless integration into compact automation systems without sacrificing performance. The optimized center opening eliminates the need for external cable management, reducing the risk of tangled wires and improving operational safety while simplifying system design for engineers. Its precision-ground and hardened cam rollers ensure zero backlash, delivering exceptional accuracy and repeatability that is critical for applications such as drilling, gear cutting, and pad printing. The robust construction, featuring a solid base and cross roller bearings, enables the table to withstand high loads and operate smoothly even in harsh industrial environments, ensuring long-term reliability and minimal wear. Additionally, the table supports multiple installation positions-horizontal, vertical, or suspended-and can be freely programmed to adjust indexing angles, making it versatile enough to adapt to changing production needs.

The Rotary Indexing Table with Center Opening is widely used across various industrial sectors, thanks to its flexible design and high performance. In the packaging and beverage industry, it is used for precise positioning of bottles, cans, and packaging materials during filling, capping, and labeling processes, ensuring consistent product quality and high production speeds. In the automotive and aerospace industries, it facilitates accurate machining, assembly, and inspection of components, where precision and repeatability are non-negotiable. The pharmaceutical and cosmetics industries rely on its hygienic design and precise positioning for packaging and labeling of products, adhering to strict industry standards. It is also an essential component in rotary pad printing machines, drilling equipment, and robotic handling systems, where the center opening enables efficient cable routing and tool access, streamlining operations and reducing downtime. For special machine builders and design engineers, its open-center design provides greater flexibility for attaching tools, robots, and other equipment, supporting custom automation solutions.

When selecting a rotary indexing table for your automation system, reliability, precision, and flexibility are key factors-and our product delivers on all three. Unlike generic indexing tables, our Rotary Indexing Table with Center Opening is engineered with the specific needs of modern manufacturers in mind, combining high precision with a user-friendly design. We use only high-quality materials, including hardened cams and cam rollers, to ensure durability and long service life, reducing maintenance costs and operational downtime. Our team offers customizable solutions, allowing you to select the center opening size, gear ratio, and motor compatibility that best fit your application, ensuring a perfect fit for your production line. Additionally, our product is backed by comprehensive technical support, from installation guidance to after-sales service, ensuring you get the most out of your investment. Whether you need a compact table for small-scale operations or a heavy-duty model for high-load applications, our Rotary Indexing Table with Center Opening is the reliable, high-performance solution to elevate your automation workflow.
