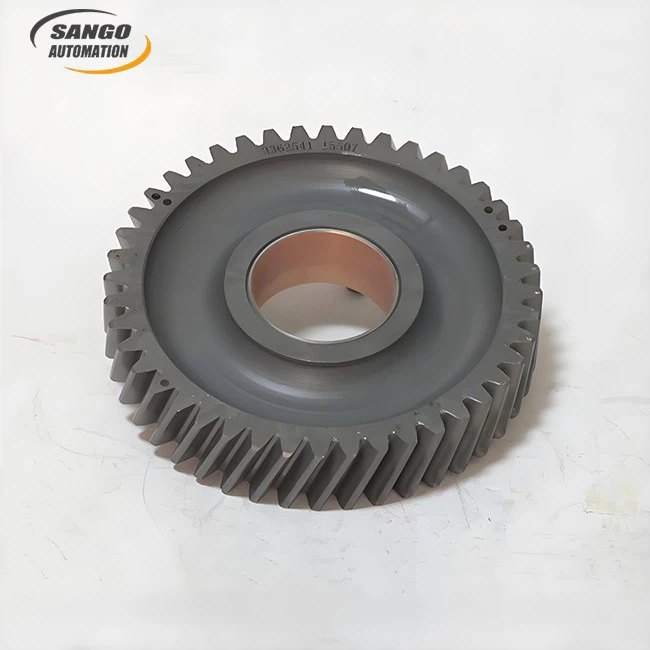

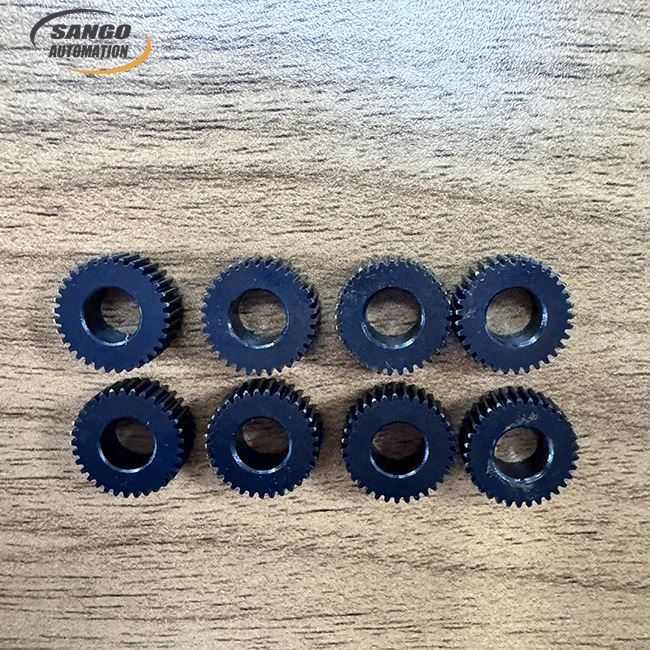

About Idler Gear
Core Features of Idler Gear
Idler gear is an intermediate gear that does not directly drive the load, and it has the following characteristics.
Change the direction of rotation
When the two gears are directly engaged, their rotation directions are opposite, and in order to make the rotation direction of the driving and driven wheels the same, an IDLER gear can be added in the middle.
Adjust gear engagement clearance
Idler Gear can be used to eliminate backlash caused by manufacturing tolerances or wear. This can effectively reduce shock, vibration, and noise during transmission, especially suitable for high-precision scenarios such as robot arms and precision instruments.
Load sharing
In complex gearboxes, if Idler Gear is introduced, torque and load can be distributed over more teeth. This helps to reduce wear and tear on individual gears, extending the lifespan of the entire drivetrain.
Idler Gear Production Process
In order for our final customized gear products to be delivered to our customers to strictly meet the customer's requirements, we strictly follow the following process when producing idler gear.
Design and Analysis
If the customer has specific drawings, we directly analyze and simulate the test according to the customer's drawings. If the customer only provides the actual working conditions and requirements, our engineers will perform CAD gear geometry modeling and CAE tooth profile optimization according to the customer's needs.
Material Selection
According to the customer's specific application scenario (load, weight, corrosion resistance requirements), the most suitable material is selected, generally selected materials such as alloy steel, aluminum alloy or engineering polymer.
Precision Machining
High-precision CNC (Computer Numerical Control) lathes, milling machines, and gear hobbing machines/gear shaping machines (such as Kashifuji gear skiving machine, Ningjiang CNC gear hobbing machine, etc.) are used for processing to ensure that the outer circle, inner hole and tooth shape of the gear meet the size and shape required by the drawing.
Heat Treatment
For metal materials such as alloy steel, we will carry out precise heat treatment processes such as carburizing quenching and nitriding to improve their surface hardness and wear resistance.
Finishing and Surface Treatment
After heat treatment, IDLER GEAR workpieces can develop minor deformations and require fine grinding (e.g. boreholes, end faces) to restore the highest precision. At the same time, surface treatments such as nickel plating, blackening, and phosphating are carried out according to the needs to enhance corrosion resistance.
Quality Inspection
We use high-precision coordinate measuring machines, gear inspection machines, and roughness meters to conduct 100% or strict sampling inspection of gear diameters, modulus, tooth shape errors, accuracy levels (up to ISO level 5), etc., to ensure that all parameters meet specifications.
Cleaning, Packing and Delivery
After thorough cleaning and anti-rust treatment, qualified gears will be individually packaged according to your needs to prevent bump damage during transportation, and finally delivered to you by express, air or ship.
Technical Specifications
The technical specifications we are able to support with Custom IDLER Gear are shown in the table below.
| Project |
Specifications
|
|
Material
|
Alloy steel (e.g. chrome-molybdenum steel), aluminum, engineering polymers (e.g., POM, nylon)
|
|
Diameter Range
|
3mm - 300mm
|
|
Modulus Range
|
0.3 - 5.0
|
|
Tooth Shape
|
Support non-standard customized design, common tooth shapes include straight teeth, helical teeth, etc
|
|
Accuracy Level
|
Up to ISO/DIN/GB level 5
|
|
Load Capacity
|
Maximum speed of 5000 RPM (depending on material and design)
|
|
Heat Treatment
|
Carburizing quenching, nitriding and other processes are available to enhance surface hardness and wear resistance
|
Application Fields
|
Applications
|
Scenario
|
|
Automation And Robotics
|
Robot joints, precision reducers, conveyor belt systems
|
|
Automotive Industry
|
Gearbox, timing system, starter motor
|
|
Drones And Aerospace
|
UAV propulsion system, model aircraft, aircraft actuation system
|
|
Consumer Electronics
|
Printers, copiers, scanners
|
|
Medical Devices
|
Diagnostic instruments, infusion pumps, surgical robots
|
Precision Engineered for Industrial ReliabilityOur Idler Gears are designed with meticulous attention to detail, ensuring precise tooth engagement and minimal noise, even at speeds up to 3000 RPM. The external gearing arrangement and robust iron construction provide lasting performance and efficient power transmission tailored for the demanding conditions of industrial machinery.
Adaptable and Customizable SolutionsWe offer a range of customization options according to your specific application drawings, guaranteeing the gear fits your system precisely. With a versatility that covers various modules, teeth numbers, and operating environments, our gears meet unique industry requirements for transmission systems.
FAQ's of Idler Gear:
Q: How does the idler gear function in industrial transmission systems?
A: An idler gear serves to transmit motion and maintain the direction of rotation between drive gears without altering the overall gear ratio, ensuring smooth and efficient power transmission in industrial machinery.
Q: What is the typical hardness and surface finish of this idler gear?
A: The gear features a precision ground surface finish and a hardness rating of 55-60 HRC, which enhances durability, wear resistance, and performance under high-load applications.
Q: Where can these idler gears be installed?
A: These gears are ideal for use in a variety of industrial machinery and transmission systems that require reliable, efficient, and low-noise operation-commonly found in factories and manufacturing units.
Q: What lubrication methods are recommended for optimal performance?
A: Optimal gear performance and longevity are maintained by using oil bath or grease lubrication, which supports operation in demanding environments and ensures smooth, quiet movement.
Q: Can the idler gear be customized based on specific application needs?
A: Yes, we provide customization services based on your engineering drawings to match unique dimensional or application requirements, ensuring the gear integrates seamlessly into your systems.
Q: What are the notable benefits of choosing this idler gear?
A: Benefits include high efficiency (up to 98%), low noise, a wide range of modules and teeth, excellent wear resistance, and reliable adaptability in both standard and customized designs.
Q: When is it necessary to replace or maintain the idler gear?
A: Regular inspection is advised for signs of wear or decreased performance. Replacement or maintenance should be performed if there is noticeable pitting, excessive noise, or reduced efficiency to prevent system downtime.
