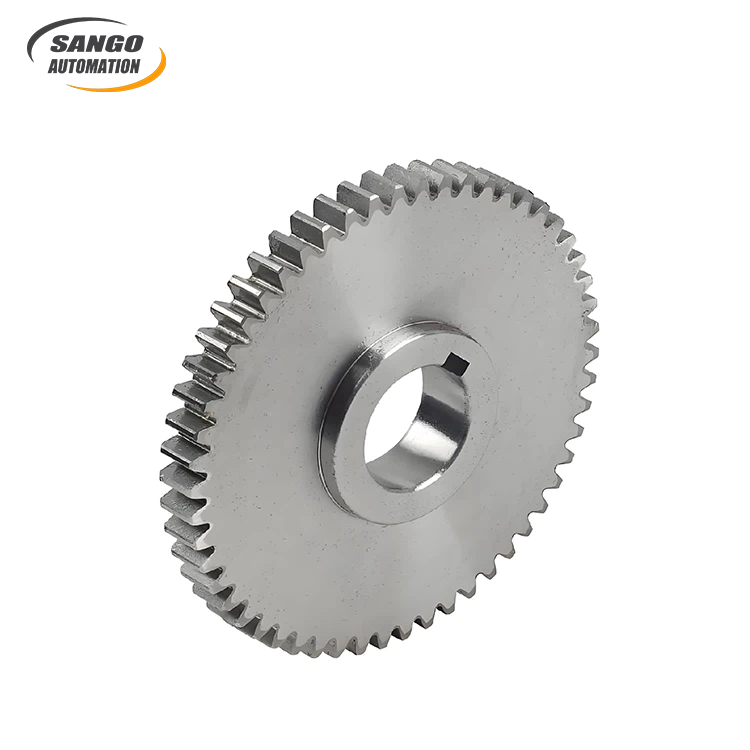

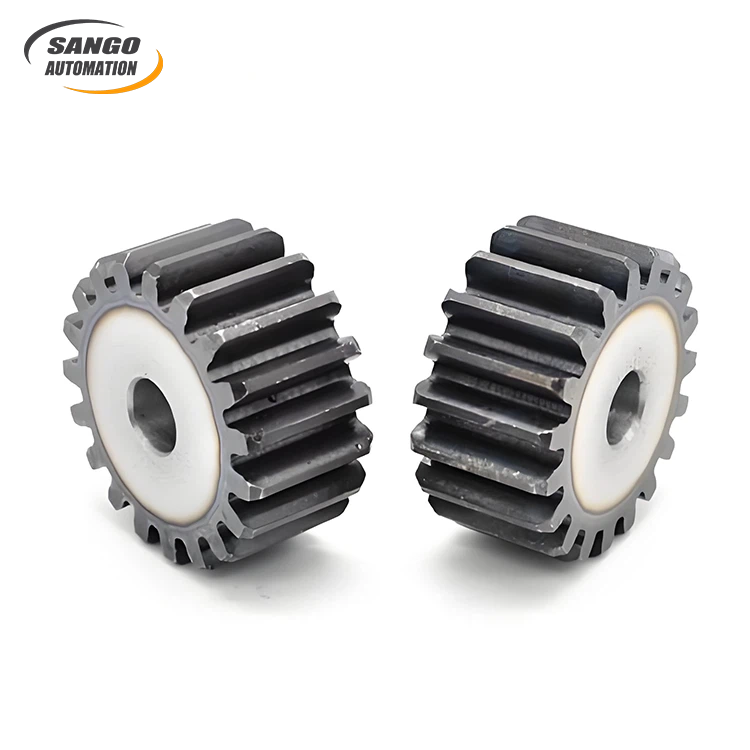

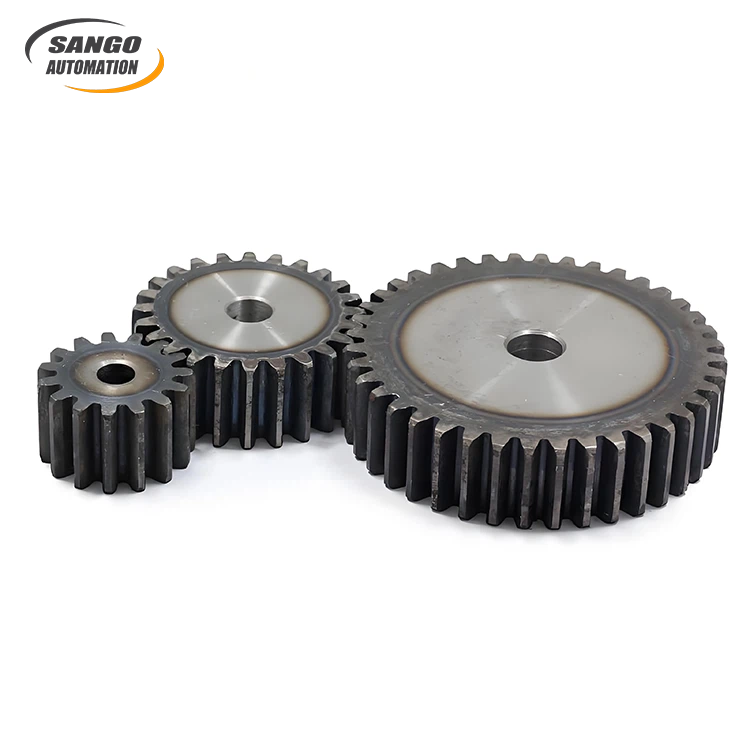

Custom Metal Spur Gear

SO 5 level precision

Total accumulated deviation of tooth pitch Fp0.012mm, total deviation of tooth profile Fa0.006mm, reaching ISO 5/GB 5/DIN 5 level standard.

0.01mm Tolerance control

ID / OD / Thickness full size tolerance 0.01mm, using the "scraping finishing + precision turning + CMM compensation" process chain.

Non-standard customization

Module M1~M8 (support M0.3 micro-precision gears), unlimited number of teeth, pressure angle 201 adjustable.

Special tooth shapes (trimmed teeth/drum teeth), shaft holes, keyways and other non-standard structures can be customized according to the drawings provided by you.

Diversified materials and processes

Material matrix: S45C, 304 stainless steel, aluminum alloy, copper alloy, nylon 66, etc. (support for customer-specified materials).

Heat treatment: tempering, high-frequency quenching, nitriding (hard-scraping process adapted to the HRC50 + material).
