About 68YH Heavy-Duty Roller Cam Hollow Rotary Table

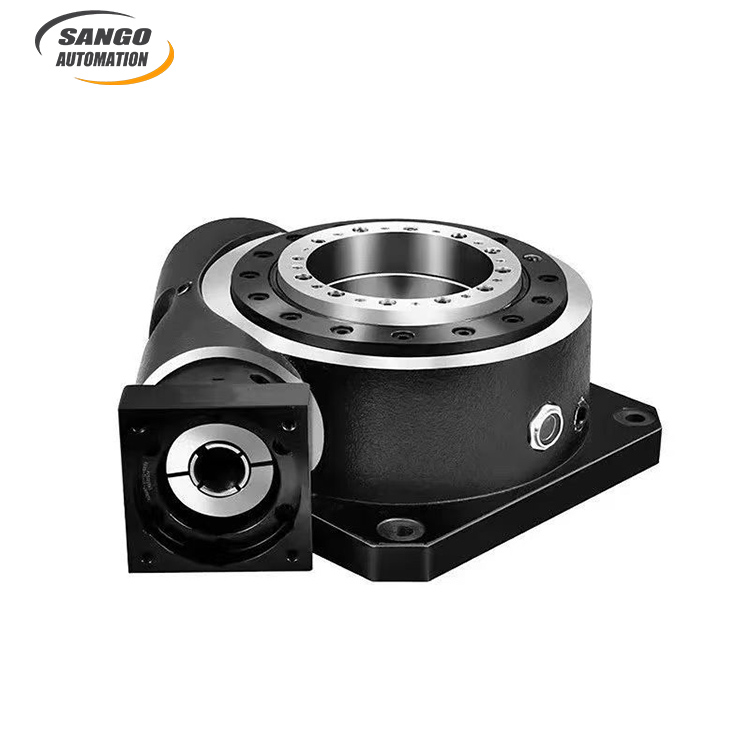

The 68YH Heavy-Duty Roller Cam Hollow Rotary Table from Sango Automation is designed for automated equipment that demands stable indexing, high load capacity, and precise rotary positioning. It combines a roller cam transmission, crossed roller bearing, planetary gearbox, and servo motor drive in a single integrated unit delivering 5 arc sec repeatability, 20 arc sec indexing accuracy, and a minimum setting unit of 0.001.
Sango Automation is a China-based manufacturer with over 10 years of experience in rotary index tables, hollow rotary actuators, cam indexing drives, and precision gearboxes. We serve automation equipment builders and integrators worldwide, with products shipped to India, Europe, Southeast Asia, and North America.
Key Specifications
| Parameter |
Value |
| Model |
68YH |
| Drive |
Planetary Gearbox + Servo Motor |
| Bearing |
Crossed Roller Bearing |
| Reduction Ratio |
20:1 |
| Maximum Input Speed |
<1000 r/min |
| Allowable Thrust Load |
150 kgf |
| Allowable Inertia Torque |
55 Nm |
| Allowable Radial Load |
1580 N |
| Allowable Axial Load |
2160 N |
| Repeatability |
5 arc sec |
| Indexing Accuracy |
20 arc sec |
| Minimum Setting Unit |
0.001 |
| Parallelism |
<0.02 mm |
| Face Runout |
<0.01 mm |
| Concentricity |
0.01 mm |
| Weight |
18 kg |
Product Features
1. Roller Cam Transmission for Heavy-Duty Indexing
The 68YH uses a roller cam mechanism to convert input rotation into controlled output movement. The profiled cam works with rollers to transfer motion to the rotary table, generating precise indexing positions. Compared with conventional gear transmission, roller cam contact provides smoother motion, reduced backlash, and longer service life under continuous operation.
2. Hollow Rotary Structure for Simplified Machine Integration
The hollow center allows cables, pneumatic lines, shafts, and other machine components to pass directly through the rotary axis. This simplifies fixture design, reduces external routing complexity, and makes the rotary table easier to integrate into automated equipment with components arranged around the center axis.
3. High-Precision Positioning
With 5 arc sec repeatability and 20 arc sec indexing accuracy, the 68YH delivers consistent positioning for automated indexing processes. Concentricity is within 0.01 mm, face runout is below 0.01 mm, and parallelism is below 0.02 mm supporting installation precision in demanding automation applications.
4. Servo Motor + Planetary Gearbox Drive
The 20:1 reduction ratio provides speed reduction between the servo motor and rotary mechanism. The servo motor supports programmable positioning, making the 68YH compatible with machine control systems for flexible indexing sequences.
5. Heavy-Duty Load Capacity
Combining the roller cam transmission with a crossed roller bearing, the 68YH supports higher load requirements: 150 kgf thrust load, 1580 N radial load, 2160 N axial load, and 55 Nm inertia torque. The crossed roller bearing supports the rotary structure in both radial and axial directions.
Applications
CNC automation and rotary positioning systems
Assembly equipment and automated production lines
Inspection equipment and multi-station rotary machines
Welding and fixture positioning systems
Heavy-duty indexing systems
Customization Service
Sango Automation offers custom rotary table configurations based on customer drawings and machine specifications. Customization options include: custom hollow bore, custom mounting interface, servo motor configuration, special load requirements, and custom dimensions. Customers can provide load data, indexing angle, rotation speed, motor requirements, mounting conditions, and installation space for evaluation.
Why Choose Sango Automation for Your Rotary Table Requirements
Direct manufacturer factory-direct pricing without intermediary markups
India market experience Sango hollow rotary tables have been successfully shipped to Indian customers and received positive feedback on performance and build quality
Full technical support application evaluation and model selection assistance available
OEM & ODM accepted customized configurations available for specific machine requirements
High Precision and Robust EngineeringThe 68YH Rotary Table ensures precise positioning with an indexing accuracy of up to 10 arc seconds and repeatability within 2 arc seconds. Its high-strength alloy steel construction and zero-backlash roller cam design guarantee reliable, long-term performance in rigorous industrial applications-be it in robotics, CNC machinery, or other automated positioning systems.
Versatile Integration and AutomationWith servo-driven operation and compatibility across various voltages and phases, the 68YH is adaptable to a broad range of automation settings. Integration is streamlined via electrical interfaces with PLC or custom servo controls. Optional position sensors and remote control provide enhanced process control and monitoring.
Maintenance-Free and Durable OperationDesigned for continuous use, this hollow rotary table features sealed, grease-filled bearings that eliminate the need for regular lubrication, supporting maintenance-free 24/7 operation. Its IP65 rating ensures protection against dust and low-pressure water, making it suitable for industrial environments.
FAQ's of 68YH Heavy-Duty Roller Cam Hollow Rotary Table:
Q: How does the 68YH Heavy-Duty Rotary Table achieve high positioning accuracy?
A: The 68YH utilizes a roller cam drive with a zero-backlash design, achieving up to 10 arc seconds indexing accuracy and up to 2 arc seconds repeatability. The high-strength alloy steel body also minimizes deformation, ensuring stable and precise positioning.
Q: What applications are best suited for this rotary table?
A: The 68YH model is ideal for precise rotary positioning in automation equipment, CNC machines, robotics, assembly lines, and any application requiring reliable, high-load rotation with superior accuracy.
Q: When should the rotary table be maintained or lubricated?
A: This rotary table is maintenance-free due to its sealed, grease-filled design, which is engineered for lifetime lubrication. No additional maintenance or re-greasing is required under normal operating conditions.
Q: Where can the 68YH Rotary Table be installed?
A: It is designed for horizontal mounting and suitable for a wide range of industrial settings, including manufacturing, process automation, and environments requiring high load capacities and precision.
Q: What is the process for integrating the 68YH with automation systems?
A: Integration is straightforward via electrical connectivity to a suitable servo motor or PLC system. The table supports various control types, including servo control and remote operation through compatible controllers.
Q: How does the zero-backlash design benefit industrial automation?
A: Zero-backlash ensures precise, repeatable movement without lost motion-essential for applications requiring synchronized, accurate positioning and smooth operation, thereby enhancing process efficiency and reducing operational errors.
Q: What load and speed capabilities does this model offer?
A: The 68YH can handle radial loads up to 1800 kg, axial loads up to 1000 kg, and maximum output torque of 180 Nm. It delivers a speed range of up to 200 rpm, making it suitable for both high-load and quick-rotation requirements.
