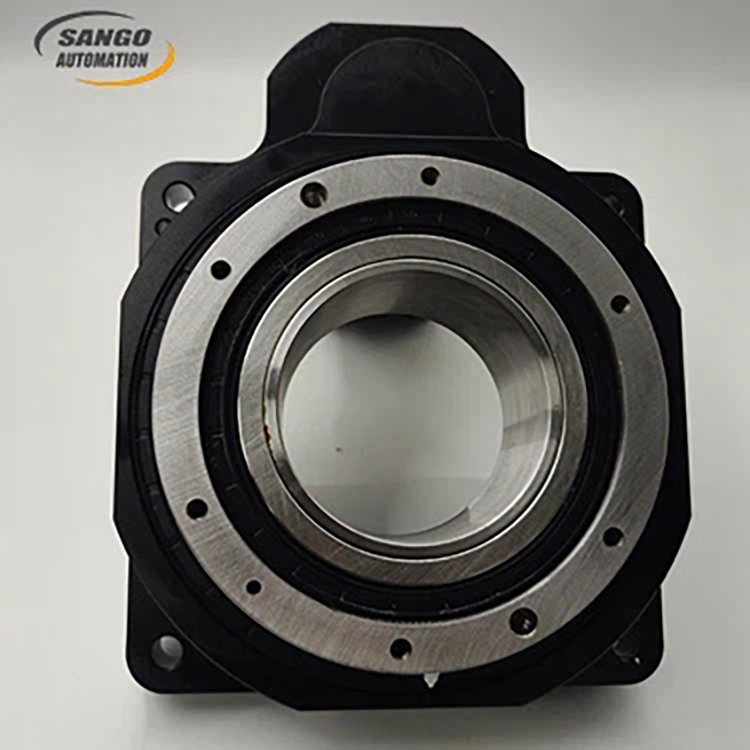

About Hollow Rotary Platform For Water Jet Cutting
Application in water jet cutting
Achieve multi-angle cutting
Hollow rotary platform can drive workpiece or cutting head to rotate, which make water jet cut the workpiece from different angles. It is particularly important for workpieces which have complex shapes, curved surface or require multi-surface machining, such as turbine blades in the aerospace field and curved surface structure of automotive components, etc. Hollow rotary platform rotates to cooperate with water jet cutting, which can achieve multi-angle cutting with one-time clamping. It can improve machining efficiency and precision.
Improve cutting uniformity
When cutting large or irregularly shaped workpieces, hollow rotary platform is able to make workpieces stress evenly, which ensures the cutting depth and quality of water jet are consistent at different positions. For example, when cutting large stone slabs or metal sheets, the rotational motion of hollow rotary platform can compensate for unevenness or thickness differences on the surface of the workpiece. It makes cutting edge smoother and more uniform, which reduces cutting deviation.
Optimize cutting efficiency
Hollow rotary platform can achieve continuous cutting by rotating the cutting head. It reduces the time spent on frequent pauses and repositioning in traditional linear cutting. When cutting large sheets or long strips of material, rotation function can enable the water jet to uniformly act on the surface of the material, which improves cutting speed and overall production efficiency.
Improve cutting quality
Hollow rotary platforms have features such as high-precision positioning and steady rotation. These features contribute to ensuring that the contact angle and pressure between water jet and material surface maintain consistency. It can solve many problems such as reducing burrs on the cutting edge, deformation and taper problem. Especially when cutting hard materials such as metal and ceramics, hollow rotary platform can significantly improve flatness and smoothness of the cutting surface.
Adapt to complex workpiece shapes
For workpieces with irregular contours or internal structures, hollow rotary platform can coordinate with the numerical control system and achieve the flexible path planning of water jet. For example, in mold manufacturing, hollow rotary platforms can enable water jet to cut out complex cavities and cores precisely. In stone processing, hollow rotary platform can help water jet complete the cutting and carving of irregular stone materials.
Integrated auxiliary function
The hollow structure of hollow rotary platform is convenient to integrate other auxiliary devices, such as abrasive conveying pipeline, cooling system, or online detection device. For example, in abrasive water jet cutting, the abrasive can be directly delivered to the area through the hollow channel, ensuring abrasive and water jet mix thoroughly, which enhances the cutting capability.
How to select a suitable model
Provide working conditions of your equipment
1. Weight of loading
2. Diameter of turntable
3. Max speed. Or how many seconds to rotate how many degrees?
4. Drawing or photo of your applicaiton
5. Horizional, vertical or suspension installation?
6. Quantity
FAQ
Could it be adapted to the customer's motor?
Provide the adapter flange interface standard. Customers need to provide the motor model and drawings. Our company can also provide motors or other accessories.
Is it in stock? How long is the delivery time?
Standard model: 7-10 days (shipped from China). Customized model: 2-8 weeks (drawings or technical parameters must be provided).
Where can I find the specs and a drawing?
You can find all the technical documentation and CAD files on our website. All you have to do is go to our website and get in touch with us. They are eager to help you.
Precision Engineering for Water Jet CuttingDesigned for high-accuracy applications, the Hollow Rotary Platform ensures consistent, backlash-free rotation, supporting water jet cutting, CNC indexing, and more. Its positioning accuracy of 10 arc-seconds and repeatability of 5 arc-seconds deliver exceptional results for precision tasks, enhancing productivity in automation lines.
Engineered Durability & LongevityConstructed from premium alloy steel and aluminum, and treated with anodized, corrosion-resistant finishes, this platform withstands harsh industrial environments. Featuring IP65 dust and water protection, it operates flawlessly for over 20,000 continuous hours, significantly reducing maintenance requirements.
Flexible Integration & CustomizabilityThe platform offers multiple size and shaft diameter options, torque ratings up to 60 Nm, and supports various servo motor configurations. With built-in PLC or servo controller compatibility, optional remote control, and both flange and base mounting, it adapts easily to a wide range of system requirements and installation environments.
FAQ's of Hollow Rotary Platform For Water Jet Cutting:
Q: How does the hollow rotary platform enhance precision in water jet cutting applications?
A: The platform offers a positioning accuracy of 10 arc-seconds and repeatability of 5 arc-seconds. This high level of precision minimizes errors in cutting and indexing, ensuring clean, accurate results suited to demanding CNC and water jet cutting tasks.
Q: What benefits does the dust-proof and water-resistant design provide?
A: With an IP65 rating, the rotary platform resists intrusion from dust and water, allowing it to perform reliably in wet and abrasive environments typical of water jet cutting. This feature extends the platform's working life and helps maintain consistent performance.
Q: When should I select different outer diameter or hollow shaft diameter options?
A: Choose the outer diameter (110 mm, 130 mm, 170 mm) and hollow shaft diameter (30 mm, 40 mm, 50 mm) depending on the workspace, load requirements, and cabling needs of your specific application. Larger models support higher torque and load capacity, ideal for heavy-duty or high-throughput operations.
Q: Where can the rotary platform be installed, and what are its mounting options?
A: Installation is flexible-the unit supports both flange and base mounting, allowing integration into various equipment setups. Its compact and robust design enables use in automated water jet machines, manufacturing cells, and CNC rotary axes.
Q: How should the platform be maintained?
A: The rotary platform is filled with lifetime grease, eliminating the need for regular lubrication. Routine checks for cable integrity and occasional cleaning for exterior dust accumulation are recommended, but overall maintenance needs are minimal due to its robust construction.
Q: What control types and connectivity options are available?
A: The platform is compatible with PLCs and servo controllers, and typically uses wired connectivity for stable signal transmission. Remote control capability is also available as an option, supporting flexible automation layouts.
Q: What are the primary advantages of choosing this hollow rotary platform?
A: Key advantages include high precision and repeatability, integrated dust and water protection, customizable size and power options, long working life, low maintenance, and seamless adaptability to various automation and cutting systems.
