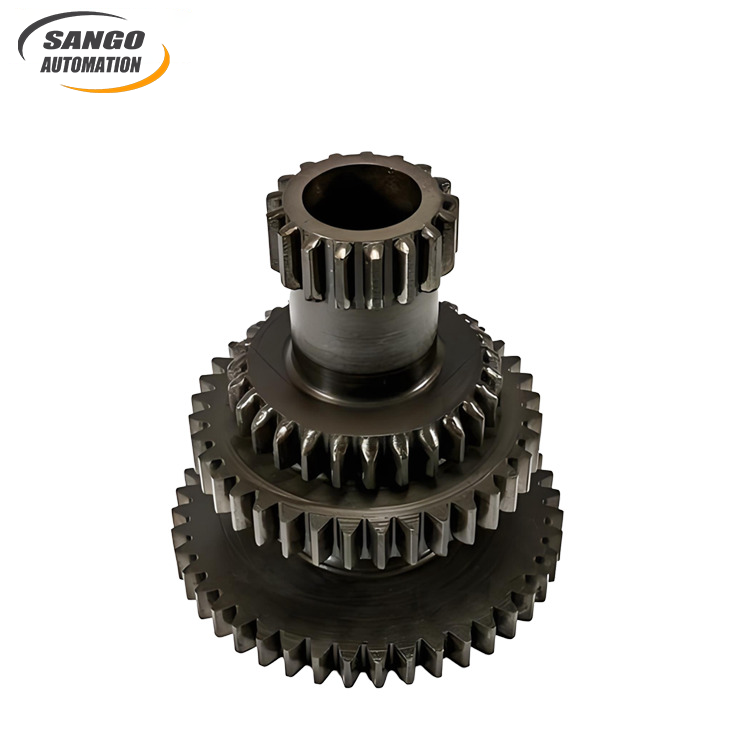

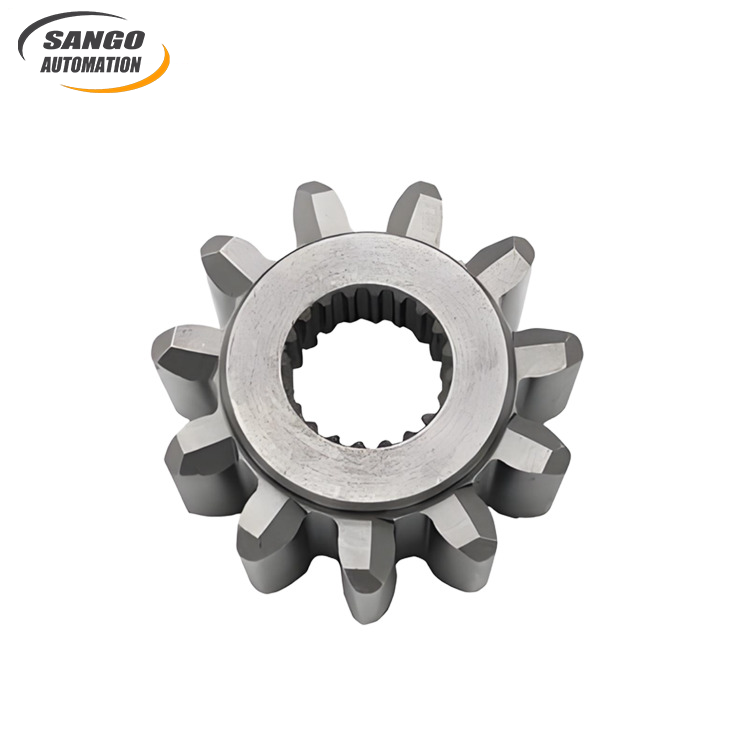

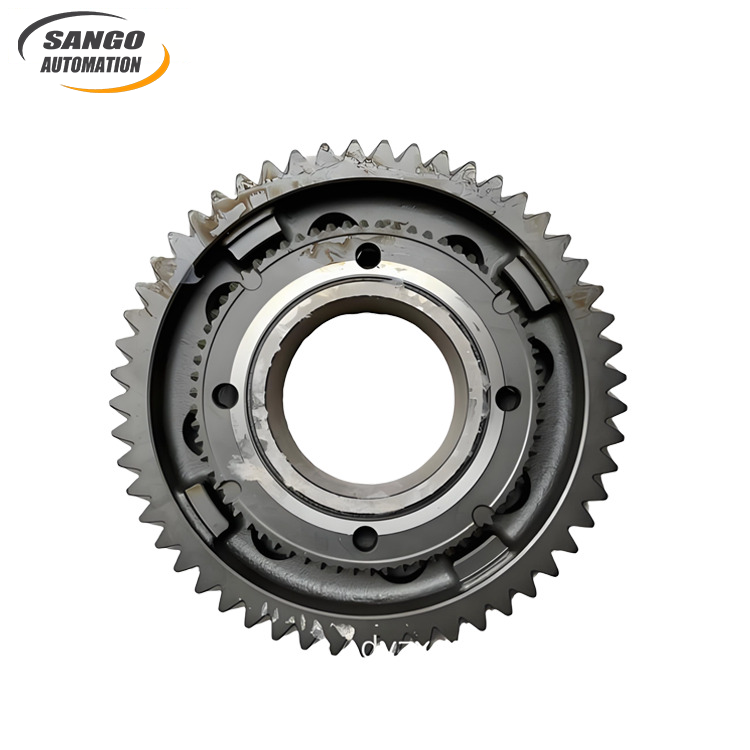

About Automotive Gears
Detailed Product Features
Superior Noise Reduction
Building on our experience manufacturing zero-backlash harmonic drives ( 10 arc sec), we apply the same rigorous standards to automotive gears. Our ISO Level 5 precision ensures smooth meshing, significantly reducing whine and vibration in Electric Vehicle (EV) reducers and high-speed transmissions.
Complex Internal Gear Capability
Equipped with the state-of-the-art Kashifuji Gear Skiving Machine KPS30, we specialize in manufacturing high-precision internal ring gears used in planetary gear sets (Automatic Transmissions & Hybrids). This allows for integrated gear manufacturing that traditional hobbing cannot achieve.
Ultra-Precision Surface Finishing
Our capability extends beyond shaping. With ultra-mirror finishing capabilities (Accuracy 0.002mm), we optimize the gear surface to reduce friction, extend service life, and improve overall transmission efficiency.
Technical Specifications
|
Feature
|
Specification
|
|
Gear Types
|
Spur Gears, Helical Gears, Internal Ring Gears, Planetary Gears, Shafts, Splines
|
|
Precision Standard
|
ISO / DIN / GB Level 5 (JIS Grade N5)
|
|
Module Range
|
0.1 - 5.0
|
|
Diameter Range
|
3mm - 300mm
|
|
Production Process
|
Hobbing, Shaping, Power Skiving (Hard Skiving), Precision Grinding
|
|
Material Options
|
20CrMnTi, SNCM420, SCM440, 42CrMo, or Custom Spec
|
|
Hardness
|
HRC 58-62 (After Carburizing/Induction Hardening)
|
|
Surface Finish
|
Up to Ra 0.2 (Super-finishing available)
|
Applications
Electric Vehicle (EV) Reducers: High-speed input shafts and helical gears.
Planetary Gearboxes (AT/Hybrid): Sun gears, Planet gears, and Internal Ring gears.
Steering Systems (EPS): Precision worm gears and pinions requiring high safety factors.
Engine Components: Oil pump gears, balance shaft gears, timing gears.
Actuators: Seat adjustment gears, window lift gears (small module expertise).
