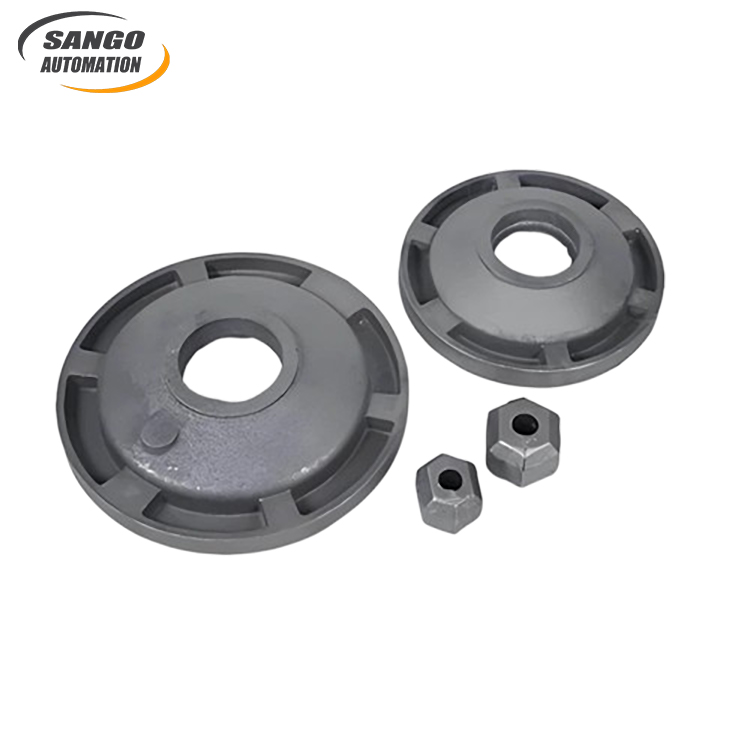

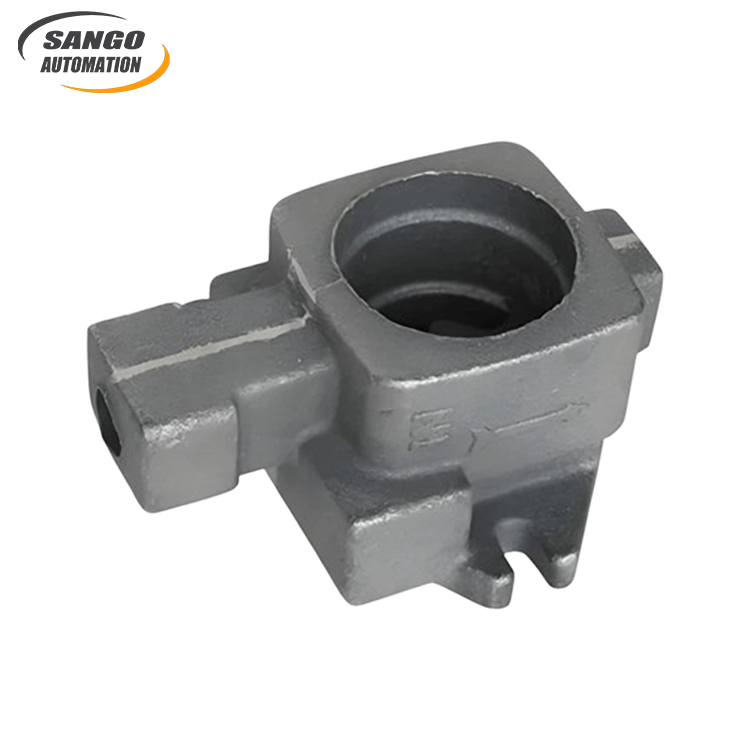

About Ductile Iron Castings
Feature
High strength
The tensile strength and yield strength of ductile iron are significantly higher than those of ordinary cast iron and approach the properties of some steels. That's because the spheroidal graphite in ductile iron can prevent crack from propagating effectively, thereby increasing the strength of the material.
Good toughness
Spherical graphite reduces stress concentration, which makes the material less prone to breakage when subjected to impact.
Excellent casting performance
It has good fluidity and it is suitable for producing castings with complex shapes.
Wear resistance and corrosion resistance
It performs better than ordinary cast iron in some environments.
Low cost
Compared with some steel materials, ductile iron has a more advantageous production cost.
Process
Raw material preparation
The primary task of manufacturing ductile iron castings is preparing the raw material, such as pig iron, scrap steel, carbon additives, as well as key spheroidizing agents and inoculants, etc. The quality ratio of these materials determine the performance of final products directly.
Smelting
Pig iron, scrap steel and recycled materials etc. are put into cupola furnaces or electric furnaces in a certain proportion. According to heating, melting and adjusting the chemical composition, the molten iron will reach specified temperature and meet requirements of composition It is crucial to control the furnace temperature, because it must ensure molten iron can reach the specified temperature.
spheroidization treatment
Spheroidization treatment is carried out after the molten iron meets requirements of temperature. The process is that making the graphite precipitates in spherical form according to specific spheroidizing agent is added to molten iron. The selection and dosage of spheroidizing agent play a crucial role in the structure and performance of the final product.
Inoculation treatment
Inoculation treatment is carried out immediately after spheroidization treatment. Inoculant is added to the molten iron to improve the roundness, distribution uniformity, and quantity of graphite spheres. This step can increase the number of graphite spheres in cast iron and refine the metal matrix. Then the overall mechanical properties will be improved.
Casting and Molding
The treated molten iron needs to be poured promptly to avoid adverse factors, such as generation of oxidation and inclusion. Controlling temperature and flow rate strictly is crucial to ensure the quality of castings during pouring.
Follow-up processing
After pouring, castings will be cooled to room temperature in a natural environment. Then cleaning work is necessary to carry out, such as removing the redundant gate and riser parts. Finally, internal stress is eliminated through heat treatment to further enhance its mechanical properties.
heat treatment: According to the performance requirements of the castings, ductile iron parts are subjected to heat treatments such as annealing, normalizing, quenching and tempering to further enhance their strength, toughness, wear resistance and other properties.
FAQ
Which fields are ductile iron castings most widely used for?
Ductile iron castings are most intensively applied in automotive manufacturing and municipal water conservancy projects. The former relies on its high performance and lightweight, while the latter values its ultra-long lifespan and low maintenance costs. Following closely are the machinery, petrochemical, and construction industries, where they are used to manufacture highly reliable structural components.
Can ductile iron castings be produced in small batches?
Ductile iron castings can be produced in small batches. Customers need to provide drawings and requirements for manufacturers. The manufacturers will carry out customized processing and ensure product quality.
What factors affect the cost of small-batch production?
The production cost of small-batch ductile iron is influenced by raw materials, process complexity and order size. The price per piece is usually higher than that of bulk purchases, but cost reduction can be achieved through optimizing the supply chain and technical control.
High-Quality StandardsThese ductile iron castings conform to ASTM A536 and EN 1563 standards, ensuring consistent mechanical properties and performance. The product undergoes rigorous quality checks for tensile strength (minimum 420 MPa), elongation (minimum 10%), and hardness (typically 130-180 HB), meeting stringent industrial requirements.
Customizable SolutionsEach casting is produced according to customer-supplied drawings and specifications, allowing for a wide range of shapes, mounting types, and coatings. Whether you need grey or custom colors, specific finishes, or unique dimensions, our flexible manufacturing accommodates diverse needs for both small and large-scale projects.
Robust Performance in Demanding ApplicationsWith excellent ductility, corrosion resistance, impact resistance, and a temperature tolerability up to 600C, these ductile iron castings are suited for heavy-duty applications such as automotive components, machinery parts, and construction equipment. The good machinability ensures further processing and integration into your systems with ease.
FAQ's of Ductile Iron Castings:
Q: How are ductile iron castings customized for specific applications?
A: Ductile iron castings are tailored according to customer-provided drawings and specifications. Customization includes shape, weight, load capacity, mounting type, and finishing options, ensuring the parts precisely match your application's requirements.
Q: What surface finishing options are available for these ductile iron castings?
A: We offer multiple surface finishing options, including sand blasting, painting, or finishes as specified by the client. This helps enhance corrosion resistance and appearance based on the operating environment and your preferences.
Q: When is ductile iron casting beneficial over other materials?
A: Ductile iron casting is advantageous when your project demands high strength, excellent ductility, impact resistance, and cost-effectiveness. It's especially suited for automotive, machinery, or construction parts exposed to mechanical stress or vibration.
Q: Where can these ductile iron castings be used?
A: Our castings are widely used in industries such as automotive, general machinery, and construction. Applications include load-bearing equipment, frames, and any components requiring durability and mechanical resilience.
Q: What is the typical production process for these ductile iron castings?
A: Production involves manual automation, followed by melting ductile iron, molding as per customer drawings, and performing requested surface finishing. Rigorous quality checks are conducted to ensure compliance with ASTM A536 and EN 1563 standards before delivery.
Q: How do these castings handle high temperatures and demanding environments?
A: These ductile iron castings perform reliably at temperatures up to 600C and offer excellent corrosion resistance, making them suitable for challenging environments and applications requiring consistent performance under stress.
Q: What are the benefits of choosing your ductile iron castings?
A: You benefit from high production capacity, excellent machinability, compliance with global standards, and full customization, all supported by a trusted supplier network throughout India.
