About Flexible Rotary Index Tables
Looking for a precise and reliable indexing solution for your automation equipment? Sango Automation is your professional partner. Our core product, the high precision rotary index table, covers a wide range of fixed rotary index table and flexible types, and is known for its excellent rigidity and long-term stability. Let us customize your own drive system to empower your equipment.
Product Features

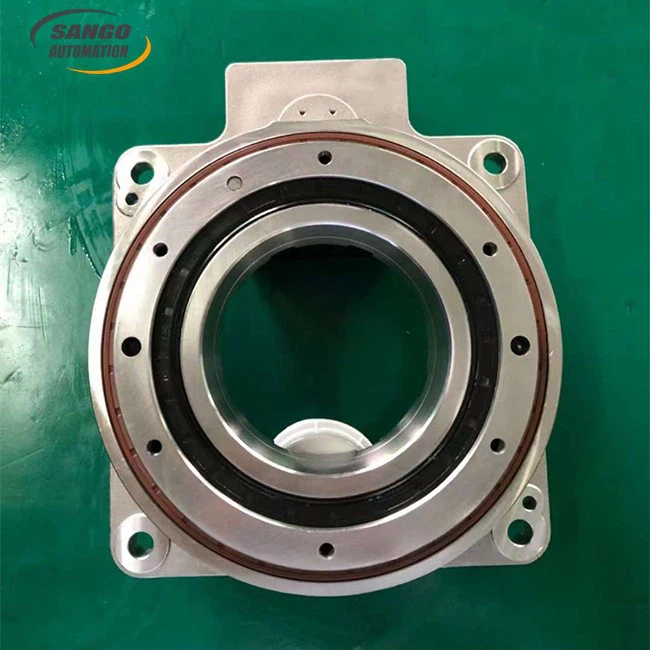

Hollow shaft design
The rotating shaft of the Flexible rotary index table is a through-hole that supports the pipeline to pass through the center, avoiding the problem of external cable entanglement and making the internal structure of the device compact.
High repeatability accuracy
Thanks to the high-precision gears used inside the Flexible Rotary Index Table, the backlash is controlled to a small extent, allowing for repeatable positioning accuracy of up to 15 arc sec.
High rigidity and high load-bearing
Because the internal core support uses crossed roller bearings, the rotary index table has strong torsion resistance, large load, and can remain stable and rigid even when starting and stopping at high speed or under eccentric loads, with almost no return clearance.
Flexible indexing
Unlike the fixed rotary index table, the flexible rotary index table can support arbitrary angle indexing through the controller, greatly improving the flexibility of the device.
Product Structure
Crossed Roller Bearing
Our full range of flexible rotary index tables are built with crossed roller bearings, which have high rotational accuracy, high rigidity and high load, and can withstand radial loads, axial loads, and overturning moments at the same time.
Precision Gear
It can convert the high-speed low torque of the motor into the low speed and large torque of the output end, and at the same time participate in the number of teeth involved in the meshing, which makes the transmission very smooth, with less vibration and noise, and smoother movement.
Sensor Kit
The pre-assembled sensor is used for origin positioning and effective positioning, and can be used with the photoelectric switch provided by our company.
Input Shaft
The integrated design of the input shaft fundamentally eliminates internal clearance, and the overall structure is stronger and more durable, capable of withstanding harsher conditions and longer service life.
Input Mounting Flange
It provides a reliable mounting interface for servo motors to ensure that the motor shaft is perfectly aligned with the platform input shaft.
Applications
Machine vision field
The flexible rotary index table works in tandem with the fixed camera above to achieve multi-station and high-precision cyclic detection of products. The hollow design ensures that all cables of the visual inspection system are free of entanglement, ensuring long-term stable operation of the equipment.
Automated processing field
As the fourth axis of the CNC machining center, the hollow rotary index table realizes the rapid conversion of workpieces between the machining position and the loading and unloading level, greatly improving the cycle time and automation of the production line.
Printing field
In cylindrical printing, the flexible rotary index table provides high repeatability (15 arc sec) to ensure that the drive substrate moves synchronously with the printhead to improve print quality.
Automatic coating field
The flexible rotary index table is linked with the dispensing head in multiple axes, which can accurately complete the 3D surround gluing of products such as mobile phone middle frames, and achieve uniform glue line forming on complex trajectories at one time.
About Sango Factory
Precision manufacturing, professional win
We focus on the R&D and manufacturing of hollow rotary table,and related precision transmission components. Our factory is not only a production base, but also a guarantee of technology implementation. With a deep understanding of the needs of the automation sector, we ensure that every piece of equipment that leaves the factory has excellent performance and long-term stability.
Core process, independent control
To ensure critical performance, we strictly control the processing and assembly process of core components such as crossed roller bearings and precision gears. Through advanced manufacturing and testing equipment(such as Kashifuji gear skiving machine KPS30,etc.), we have achieved our commitment to core indicators such as high rigidity and high repeatability accuracy (up to 10 arc sec) to ensure product quality from the source.
Ingenuity assembly, value injection
Each hollow rotating table is in a constant temperature and dust-free workshop, and is precisely assembled and commissioned by experienced engineers. We understand that reliable quality comes from attention to every detail. It is this ingenuity that enables our products to become stable and efficient core drive units in your automation equipment.
Choose us to infuse your equipment with a reliable "power heart".
Robust Construction for LongevityBuilt from high-quality metal, these rotary index tables are designed to withstand tough industrial conditions. Their robust construction ensures minimal wear and maximum longevity, reducing downtime and maintenance costs for your operations.
Warranty and After-Sales SupportChoose between a 1-year or a 20-month warranty to suit your operational needs. Our reliable after-sales support team is available to resolve any technical or quality concerns, giving you complete confidence in your investment.
Tailored for Industrial UsageThese rotary index tables are intended for industrial use, making them suitable for manufacturing, assembly, and machining applications. Their flexible design ensures compatibility with diverse industrial settings across India and beyond.
FAQ's of Flexible Rotary Index Tables:
Q: How are Flexible Rotary Index Tables operated without automation or remote control?
A: Flexible Rotary Index Tables are manually operated, requiring a user to control rotation through a straightforward interface. This design simplifies maintenance and reduces the potential for electronic malfunctions.
Q: What warranty options are available with these rotary index tables?
A: Customers can select between a 1-year warranty or an extended 20-month warranty, both covering manufacturing defects and ensuring reliable after-sales service and support.
Q: When should I use a Flexible Rotary Index Table in my industrial process?
A: Flexible Rotary Index Tables are ideal for situations that require precise, repeatable positioning in assembly lines, inspection stations, or manufacturing setups where automation is not needed.
Q: Where are these rotary index tables manufactured and supplied from?
A: These tables are manufactured, distributed, and exported from India, serving both domestic and international industrial markets.
Q: What is the process for purchasing these rotary index tables from your company?
A: To place an order, you can contact us directly as a distributor, exporter, supplier, or trader. We will guide you through the selection, payment, and delivery processes to ensure your business needs are efficiently met.
Q: How does the absence of automation benefit my operation?
A: Without automation or remote controls, maintenance becomes simpler and operational costs decrease. This is particularly beneficial in environments where human oversight and manual adjustment are preferred for flexibility or cost reasons.
Q: What are the main industrial benefits of using high-quality metal rotary index tables?
A: The primary advantages include durability, stability, and the ability to handle heavy-duty industrial tasks. Their construction ensures long service life, reducing the frequency and cost of replacements.
