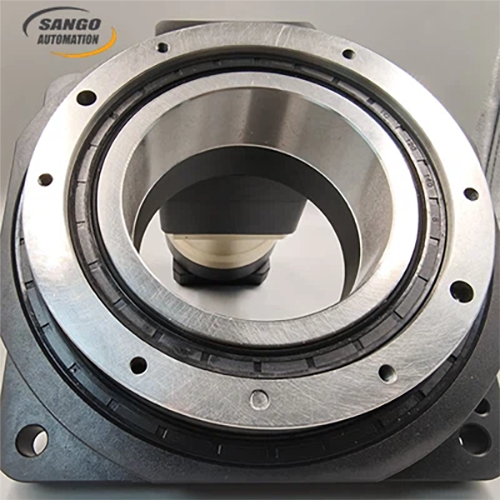

About Hollow Rotary Actuator For Plasma Bevel Cutting
Sango Automation Limited is an excellent supplier, which supply various precision instruments. Hollow rotary actuator plays a crucial role in the plasma machine. Because of its functions such as rotary positioning precisely, angle adjustment, and integrated pipeline, etc., hollow rotary actuator can improve accuracy, efficiency and automation level of plasma cutting. It is a important component for plasma equipment which make plasma equipment achieve cutting with high efficiency and high quality.
Application for Plasma Bevel Cutting
Rotary positioning of workpieces
Multi-angle cutting or handling need to be performed on the workpieces during plasma bevel cutting or processing. Hollow rotary actuator could control rotation angle and position of workpieces precisely. It can ensure accuracy and consistency of the cutting path. For example, hollow rotary actuator is able to drive the workpieces to rotate when circular or irregular-shaped workpieces are cut. It makes plasma spray nozzle cut along the predetermined trajectory and improve accuracy and quality of cutting.
Adjustment of the plasma nozzle Angle
Hollow rotary actuator could be installed on the support structure of plasma nozzle, plasma nozzle angle is adjusted through the hollow rotary actuator to adapt workpieces cutting requirements of different shapes and thickness. The flexible angular adjustment ability contributes to optimizing cutting parameters and reduces cutting deformation and HAZ(heat affected zone), which is able to improve cutting efficiency and surface quality.
Integrated pipeline management
Pipelines of gas supply, cooling water circulation and electrical control, etc. need to be connected when plasma machines are in operation. The hollow structure of hollow rotary actuator could make these pipelines pass through the center of platform. It can avoid entanglement and interference of external pipelines and simplify equipment layout, which increase the stability and reliability of systems. At the same time, hollow structure also can reduce pipeline wear and leakage risk and decrease maintenance cost.
Multi-station collaborative operation
In some large plasma processing equipment, hollow rotary actuator could coordinate with other axis of motion (such as linear guideway, hoisting appliance) and achieve multi-station collaborative operation. For example, hollow rotary actuator is able to rotate workpieces to different workstations and complete processes such as cutting, grinding and inspection, etc. in sequence. It increases production efficiency and degree of automation.
High-precision positioning and repeatability
Hollow rotary actuator has high-precision positioning ability, and its repeated positioning accuracy can reach within 5 arc sec. It can meet strict requirements of accuracy in plasma processing. In mass production, high repeatability ensure the processing quality of each workpiece is consistent. It can reduce defective percentage and improve production benefit.
Operating Principle
The structural principle of the hollow rotary actuator
The rotation effect is achieved through the meshing of gears between the inner and outer circular rings.
The gears on the inner ring mesh with the gears on the outer ring, the rotational force is transmitted to the inner or outer ring via a transmission mechanism.
How to select a suitable model
Provide working conditions of your equipment
1. Weight of loading
2. Diameter of turntable
3. Max speed. Or how many seconds to rotate how many degrees?
4. Drawing or photo of your applicaiton
5. Horizional, vertical or suspension installation?
6. Quantity
Model selection example
Working conditions from our customer:
| 1 |
Weight of loading |
10kg |
| 2 |
Diameter of turntable |
700mm |
| 3 |
Max speed. Or how many seconds to rotate how many degrees? |
180/20sec |
| 4 |
Drawing or photo of your application |
/ |
| 5 |
Horizonal, vertical or suspension installation? |
Horizontal |
| 6 |
Quantity |
1
|
Model Recommended
Model No.: HRT200JS-100-SV2 (19-70-90-M6)
Precision Cutting PerformanceEngineered specifically for plasma bevel cutting, this hollow rotary actuator delivers stable and precise motion required for forming accurate bevels on metal components. It ensures consistent output, reducing material wastage and rework, while optimizing efficiency in your cutting processes.
Durable and Reliable DesignConstructed with industrial-grade materials, this actuator is built to withstand demanding cutting environments. The product's 20-month warranty underscores its reliability and superior build quality, giving operators peace of mind for extended operational periods.
Seamless Integration and ApplicationWeighing just 10 kilograms and powered by a standard 220 Volt supply, the actuator is easy to incorporate with most plasma cutting setups. Its compatibility reduces installation downtime, allowing factories to maintain continuous productivity with minimal disruptions.
FAQ's of Hollow Rotary Actuator For Plasma Bevel Cutting:
Q: How does the hollow rotary actuator improve plasma bevel cutting processes?
A: The hollow rotary actuator enables high-precision rotational motion, which is critical for achieving accurate and repeatable bevel cuts in plasma cutting applications. This results in cleaner edges and reduces material loss during production.
Q: What is the installation process for the hollow rotary actuator in cutting equipment?
A: Installation is straightforward due to its compact 10 kg design and compatibility with standard 220 Volt systems. Simply mount the actuator onto your existing plasma cutting machine per the supplied instructions for quick setup and use.
Q: When should the hollow rotary actuator be serviced or maintained?
A: Routine maintenance is recommended as per the manufacturer's guidelines to ensure optimal performance. With a 20-month warranty, users are covered for any defects or operational issues within this period, ensuring worry-free usage.
Q: Where can I purchase the hollow rotary actuator in India?
A: The actuator is available through several channels in India, including authorized distributors, exporters, manufacturers, suppliers, and traders. You can contact your preferred supplier for availability and purchasing details.
Q: What are the main benefits of using this actuator for plasma bevel cutting?
A: The actuator provides precise movement essential for high-quality bevel cuts, increases efficiency by minimizing rework, and is backed by a robust 20-month warranty, ensuring long-term reliability and reduced downtime.
Q: How is the actuator powered, and are there any voltage requirements?
A: This actuator operates on a 220 Volt electrical supply, making it suitable for a wide range of industrial environments where this voltage is standard. This allows for easy integration with most plasma cutting systems.
Q: What applications is the hollow rotary actuator best suited for?
A: It is specifically designed for use in plasma bevel cutting, making it ideal for industries requiring accurate angled cuts on metal sheets or components as part of their fabrication processes.
