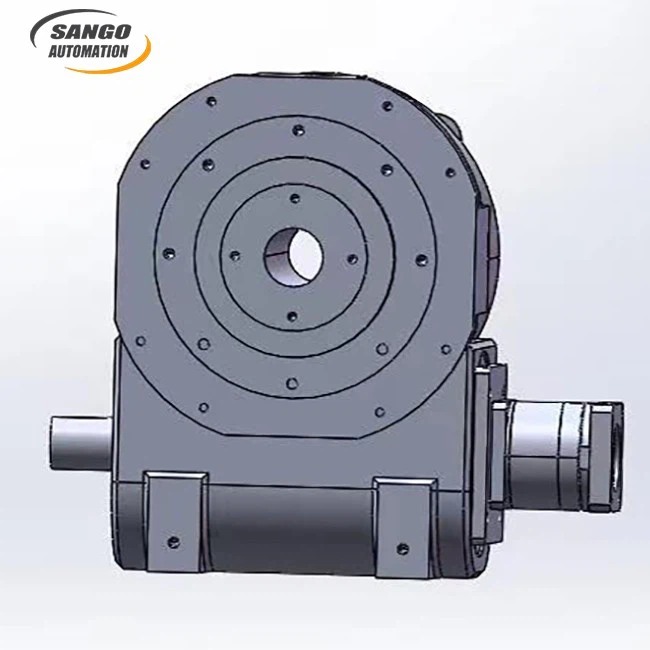

About Heavy-Duty Vertical Rotary Index Table
SANGO Automation is a top maker of precision motion control solutions. We make high-performance, heavy-duty vertical rotary index tables that are designed for tough industrial uses. Global manufacturers trust our tables because they are reliable, accurate, and work well with automated systems.
What makes ours special? They are built to handle years of non-stop work without losing precision. Plus, our team works directly with you to match the perfect table to your specific needs.
Heavy Duty Vertical Rotary Index Table Features
Built to Handle Heavy Loads: The strong cast iron and steel construction can hold up to 10,000 kg with little to no bending.
Sub-Arc-Second Accuracy: Our patented drive systems can place things with an accuracy of 1 arc-second, which is very important for machining.
Smart Connectivity: Works with CNC, PLC, and Industry 4.0 automation thanks to built-in servo controls.
Custom Solutions: Designs made just for you if you need something that doesn't fit standard sizes, works in extreme situations, or needs specific clamps.
Types of Heavy-Duty Vertical Rotary Index Table
SANGO Automation offers a diverse range of rotary tables to match specific industrial needs:
Mechanical Indexing Tables
Ideal for repetitive, high-torque applications like gear cutting.
Fixed divisions (e.g., 2, 5, 15) with manual or pneumatic clamping.
CNC Servo Index Tables
Programmable for dynamic positioning in 5-axis machining centers.
High-speed models available for laser cutting and robotic welding.
Hydraulic Rotary Tables
Designed for heavy milling & grinding with ultra-high clamping force.
Oil-cooled options for continuous-duty cycles.
Customized Solutions
Oversized tables (up to 3m diameter).
Cleanroom-rated or corrosion-resistant versions for specialized industries.
Applications of Heavy-Duty Vertical Rotary Index Table
SANGO rotary tables are used all over the world in industries where accuracy and endurance are essential:
Aerospace & Defense: Machining turbine discs, wing spars, and missile parts with an accuracy of one micron.
Automotive: drilling and milling engine blocks, transmission housings, and EV battery trays from many sides.
Energy Sector: Indexing large parts for hydraulic valve bodies and wind turbine hubs.
Medical and optics: ultra-precise rotational staging for parts of surgical robots and lens grinding.
FAQ
Q: What is a heavy-duty vertical rotary index table?
A: A heavy-duty vertical rotary index table is a rugged, high-capacity rotating platform for manufacturing. It holds and vertically rotates massive workpieces with precision-perfect for CNC machining, welding, and assembly.
Q: Why choose a vertical rotary index table over other type?
A: A vertical rotary index table saves floor space and lets workers easily access parts from the side. The heavy-duty design handles way more weight than standard rotary tables.
Q: What industries use heavy-duty vertical index tables?
A: Automotive: Machining engine blocks, axles.
Aerospace: Drilling turbine parts.
Metalworking: Rotating giant molds or gears.
Anywhere you need to rotate heavy parts vertically, these tables deliver.
Q: How accurate is a heavy-duty rotary index table?
A: Top-tier vertical rotary index tables position parts within 5 arc-seconds-that is laser-level precision for CNC machining and grinding.
Q: Where can I buy a heavy-duty vertical rotary index table?
A: Contact with us directly. We are suppliers of heavy-duty vertical rotary index table. Just Share with us your load capacity, size, and precision needs for the best match.
Precision Engineering for Demanding ApplicationsThis vertical rotary index table is crafted for tasks requiring meticulous accuracy and rugged reliability, such as heavy-duty CNC machining and automation processes. Its programmable settings facilitate highly customizable indexing cycles, and bi-directional rotation enhances operational efficiency. Top plate flatness of 0.01 mm per 300 mm and high load-bearing capacity make it ideal for both large-scale production and precision engineering tasks.
Advanced Control and Automation IntegrationThe table features PLC or CNC control with industrial-grade processors, supporting wired connectivity for seamless integration into existing automation lines. The system is available in semi-automatic or fully automatic models, compatible with 380V/415V AC, 3-phase power, and provides an adjustable speed range from 0.5 to 10 RPM. Its remote-control option and user-friendly interface simplify operation and monitoring for industrial operators.
Enhanced Durability and Safety FeaturesConstructed with alloy steel and cast iron, and incorporating precision-hardened parts, the rotary table boasts a corrosion-resistant finish for long service life in challenging environments. Safety is ensured through interlocked guards, overload protection, and emergency stop features, meeting high industrial standards. Its low-maintenance design and reliable clamping systems enable consistent performance with minimal downtime.
FAQ's of Heavy-Duty Vertical Rotary Index Table:
Q: How does the programmable indexing benefit precision machining operations?
A: Programmable indexing allows operators to set custom index positions and angles as per requirement, ensuring high precision and flexibility during machining, milling, or drilling operations. This feature streamlines workflows and significantly enhances the repeatability and accuracy of each operation.
Q: What types of clamping systems are available for this rotary index table?
A: The table supports both hydraulic and pneumatic clamping systems, allowing users to choose the solution that best suits their specific application and setup. Both systems are designed for rapid, secure workpiece holding, enabling efficient setup and operation.
Q: When should I consider automatic versus semi-automatic models?
A: Automatic models are ideal for highly automated production lines requiring minimal operator intervention, while semi-automatic models are suitable for environments that benefit from manual oversight or flexible, programmable cycles. Model selection depends on your overall automation goals and throughput requirements.
Q: Where can this rotary index table be integrated in my facility?
A: This equipment can be integrated into machining centers, CNC operations, and on milling or drilling stations. It is designed for both flange and table mounting, providing versatile installation options according to your floor plan and existing systems.
Q: What process ensures durability and longevity of the rotary index table?
A: Durability is achieved through the use of precision hardened alloy steel and cast iron components, coupled with a corrosion-resistant coating. The design includes rugged construction features and overload protection, ensuring long-term reliable operation in industrial environments.
Q: How does the table's control system enhance usability and connectivity?
A: With industrial-grade processors and PLC or CNC control, the system allows seamless operation and integration with factory automation. Wired industrial interfaces and optional remote control improve monitoring, diagnostics, and adaptability within industrial networks.
Q: What are the maintenance advantages of this vertical rotary index table?
A: The table is engineered for low maintenance due to its high-precision design, quality materials, and reliable drive and clamping systems. Routine checks are simplified, and components are built for long service life, reducing total cost of ownership.
