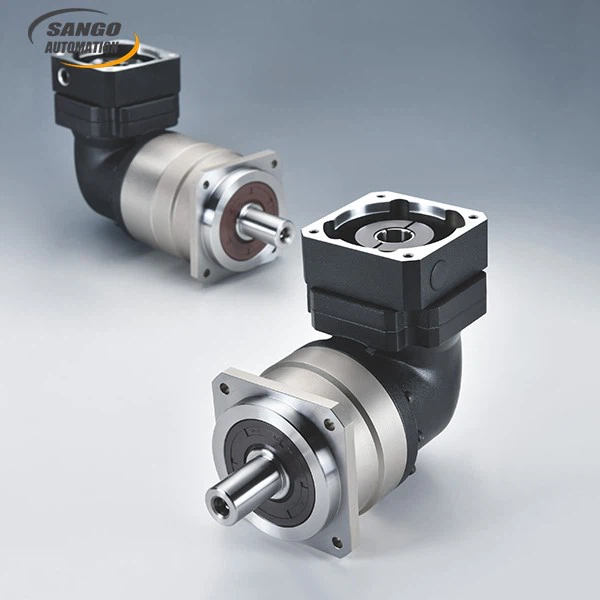

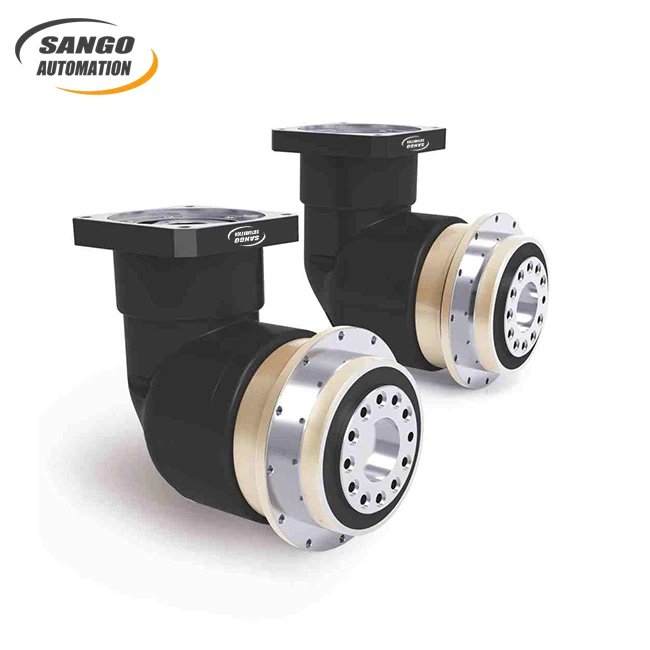

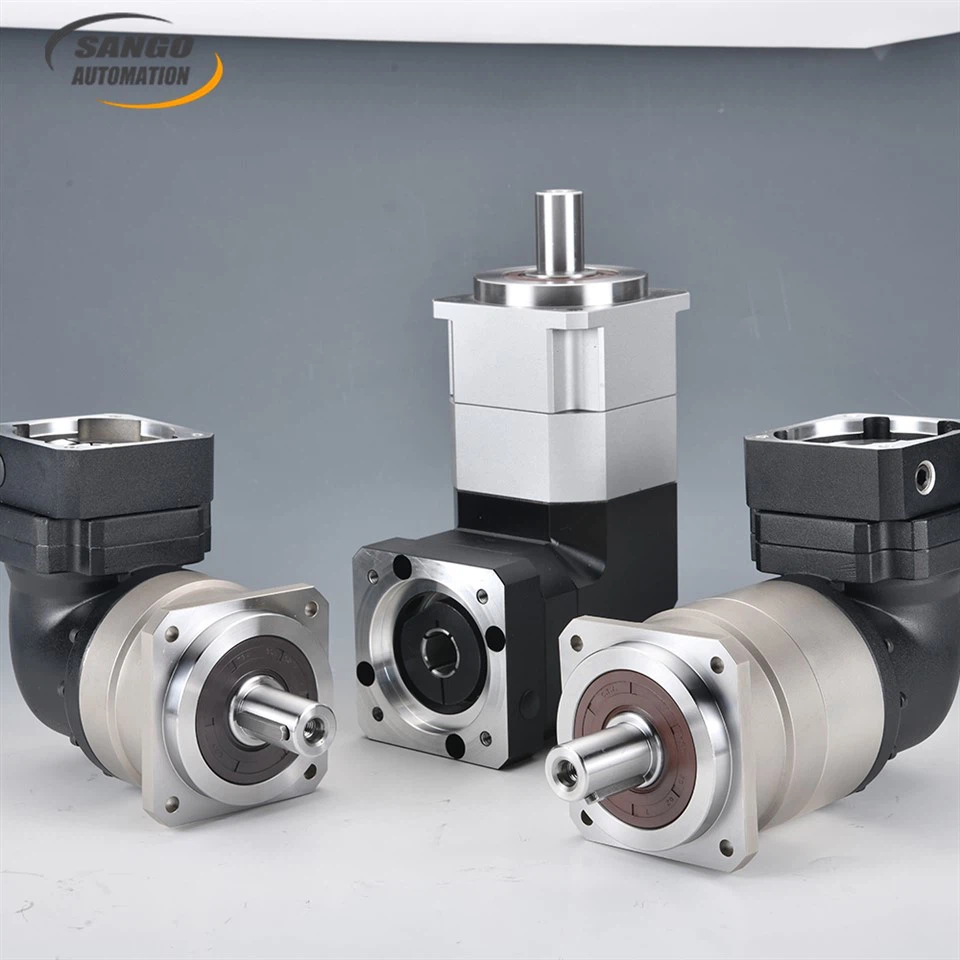

About Planetary Gear Boxes
Planetary gear boxes are vital transmission components used in various industrial equipments. Planetary gear boxes are made with a compact structure, which saves installation space while delivering high torque output and low backlash performance.
Planetary gear boxes are engineered to withstand harsh industrial environments, featuring exceptional wear resistance and long service life, which helps maintain stable equipment operation. Suitable for industrial automation lines, precision machinery, and new energy equipment alike, our planetary gearboxes deliver reliable drive solutions to satisfy a wide range of application requirements.
Product Features
We uphold a strict quality standard and choose high-strength alloy steel as the primary material for our planetary gearboxes, which effectively guarantees the product's rigidity and load-bearing capacity. After professional carburizing and quenching treatment and precision gear grinding process, the gears have high hardness and smooth surface, making the transmission efficiency reach up to 96%, which is higher than the industry average.
Our planetary gearboxes operate with low noise, typically below 60 decibels, providing a quiet working environment. We also offer custom multi-stage ratios based on customer requirements, ranging from 3:1 to 100:1. Installation is straightforward and hasslefree, with no complicated procedures needed. The fully sealed design provides reliable protection against dust and oil leakage, lowering routine maintenance costs and extending overall equipment service life.
Factory Information
With more than 10 years of rich experience in producing precision transmission equipment, our factory has always focused on the R&D and production of planetary gear boxes, and has accumulated a large number of loyal customers around the world, covering Europe, America, Southeast Asia and other regions. Our professional production workshop covers more than 2,000 square meters, which is divided into processing area, assembly area, testing area and storage area, realizing standardized and systematic production management.
The workshop is equipped with advanced CNC machining centers, precision testing tools and automatic assembly lines, which can realize high-precision processing and efficient assembly of products. We have a professional quality inspection team, which conducts strict inspections on every link from raw material entry to product delivery, ensuring that every planetary gear box delivered to customers meets the international quality standards and has stable and reliable performance.
Professional Knowledge
The processing technology of planetary gear boxes is mature and professional, and every step is strictly controlled to ensure product quality.
First of all, we select high-quality alloy steel raw materials, and conduct strict inspection on the raw materials to eliminate unqualified materials.
Then, the gears are processed by carburizing and quenching process, which can significantly improve the hardness and wear resistance of the gears, making the gear surface hardness reach HRC5862, and enhancing the service life of the gears.
After that, we carry out precision gear grinding treatment, using advanced gear grinding machines to process the gears, ensuring the accuracy of the gear tooth profile and pitch, reducing the backlash between the gears, and improving the transmission stability and efficiency.
In addition, after the assembly of the whole machine, we will conduct dynamic balance testing and load testing to check the operation status of the product, and only the products that pass all the tests can leave the factory.
Technical Parameters
|
Parameter Name
|
Specification
|
|
Transmission Efficiency
|
96%
|
|
Backlash
|
Standard backlash 3 arc min (P2)
Precision backlash 2 arc min (P1)
Ultra-precision backlash 1 arc min (P0) |
|
Ratio Range
|
3:1 - 100:1, support multi-stage combination ratio
|
|
Rated Torque
|
5Nm - 500Nm
|
|
Operating Temperature
|
-20 - 80, can adapt to high and low temperature working environments
|
|
Gear Material
|
High-strength alloy steel (20CrMnTi)
|
|
Sealing Type
|
IP65 waterproof and dustproof
|
Application Fields
|
Industry
|
Specific Application
|
|
Industrial Automation
|
CNC machines, robotic arms, conveyors, linear modules, automatic feeding equipment
|
|
Packaging Machinery
|
Packaging lines, labeling machines, filling machines, sealing machines, packaging robots
|
|
Printing Machinery
|
Digital printers, flexo printers, gravure printers, cutting machines, laminating machines
|
|
Medical Equipment
|
Medical robots, diagnostic equipment, medical testing instruments, rehabilitation equipment
|
|
New Energy
|
Solar tracking systems, wind power equipment, new energy vehicle transmission components
|
|
Precision Instrumentation
|
Measuring instruments, testing equipment, precision positioning devices
|
