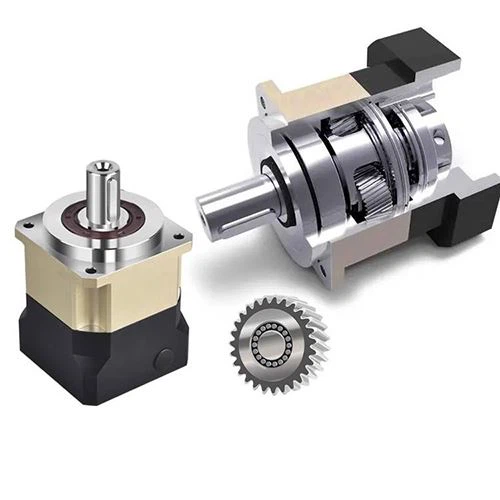

About Precision Gearboxes For Stepper Motors
Why Use Precision Gearboxes for Stepper Motors?
A stepper motor produces its maximum torque at low speeds and loses torque rapidly above a few hundred RPM. Pairing it with a precision gearbox for stepper motors addresses three limitations simultaneously: it multiplies output torque by the gear ratio, reduces output shaft speed to a usable range, and reduces the effective step angle, delivering finer angular resolution without microstepping firmware overhead.
For example, a NEMA 23 stepper with a native step angle of 1.8 paired with a 5:1 planetary gearbox achieves an effective output step angle of 0.36 without any additional driver configuration. This makes precision stepper gearboxes indispensable for telescope mounts, laboratory syringe pumps, and OEM linear stages where compact form factor and open-loop reliability are non-negotiable.
Sango manufactures precision gearboxes for stepper motors across NEMA 17, 23, and 34 frame sizes, covering planetary gear ratios from 3:1 to 100:1. Non-standard output shaft interfaces, modified flanges, and application-specific ratio combinations are supported through Sango's in-house engineering team, with production lead times of 24 weeks and direct factory pricing suited to OEM volume programmes.
Engineering note: Stepper motors are typically run at 3050% of holding torque to avoid resonance in open-loop systems. A gearbox ratio of 5:1 effectively multiplies usable torque by 4.5 far exceeding what motor upsizing alone can achieve at equivalent cost and footprint.

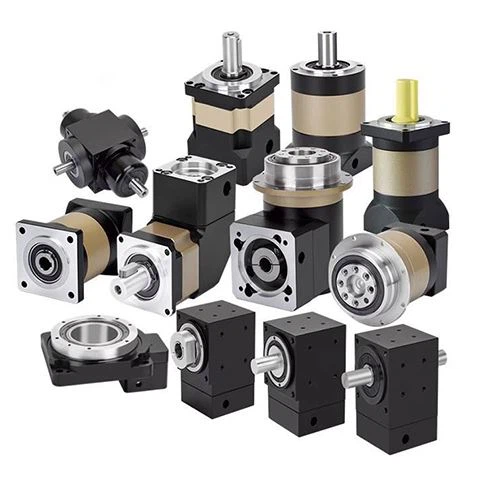

Types of Stepper Motor Gearboxes And Key Specifications
|
Gearbox Type
|
Backlash
|
Efficiency
|
Ratio Range
|
Best For
|
Form Factor
|
|
Planetary (Inline)
|
5 arcmin
|
9096%
|
3:1 100:1
|
CNC, 3D printing, lab automation
|
Coaxial, compact
|
|
Spur Gear (Inline)
|
515 arcmin
|
8592%
|
2:1 50:1
|
Low-cost OEM, light duty
|
Coaxial, low cost
|
|
Worm Gearbox
|
1030 arcmin
|
5080%
|
5:1 100:1
|
Self-locking axes, CCTV pan-tilt
|
Right-angle
|
|
Bevel Gearbox
|
512 arcmin
|
9295%
|
1:1 5:1
|
Right-angle drive, printing gantries
|
Right-angle
|
|
Cycloidal
|
2 arcmin
|
8893%
|
10:1 87:1
|
High-load indexing, harsh duty
|
Compact, heavy
|
|
Parameter
|
Definition
|
Typical Range
|
Risk if Ignored
|
|
Output Torque
|
Continuous rated torque at output flange
|
0.1 500 Nm
|
Gear fatigue, stripped output shaft
|
|
Backlash
|
Angular deadband at zero load
|
2 30 arcmin
|
Positioning overshoot, lost motion
|
|
Input Speed
|
Maximum allowable stepper input speed
|
300 3,000 RPM
|
Overheating, noise, premature wear
|
|
Reduction Ratio
|
Motor speed / output speed
|
3:1 100:1
|
Torque deficit or resolution loss
|
|
Flange Standard
|
NEMA 17 / 23 / 34 / 42 or metric IEC
|
App-specific
|
Mechanical misalignment, vibration
|
|
Output Shaft Type
|
Solid shaft, hollow shaft, flange output
|
App-specific
|
Coupling complexity, misalignment stress
|
Where Precision Stepper Gearboxes Are Used
3D Printing & FDM
Extruder and Z-axis drives use NEMA 17 planetary gearboxes to boost torque for high-viscosity filaments without motor upsizing.
Lab & Life Science
Syringe pumps, fraction collectors, and microscope stages require precise micro-dosing torque control via low-backlash stepper gearboxes.
CCTV Pan-Tilt Units
Worm-type stepper gearboxes provide self-locking and high reduction for pan-tilt camera platforms with minimal power consumption.
Telescope & Astronomy
Equatorial mounts use planetary stepper gearboxes for sub-arcsecond tracking rates, enabling long-exposure astrophotography.
CNC & Laser Machines
Rotary axis attachments and stepper-driven spindle indexers use precision gearboxes to achieve angular accuracy below 0.1.
Medical Devices
Infusion pumps and rehabilitation robotics use geared stepper drives for quiet, precise, open-loop fluid and position control.
Gear Ratio vs. Step Resolution
|
Gear Ratio
|
Effective Step Angle
|
Steps/Revolution
|
Typical Use Case
|
|
1:1 (no gearbox)
|
1.800
|
200
|
Basic open-loop positioning
|
|
3:1
|
0.600
|
600
|
3D printer extruders, light feeders
|
|
5:1
|
0.360
|
1,000
|
Linear stages, lab automation
|
|
10:1
|
0.180
|
2,000
|
Rotary tables, telescope mounts
|
|
20:1
|
0.090
|
4,000
|
High-precision indexing, CNC 4th axis
|
|
50:1
|
0.036
|
10,000
|
Micro-dosing pumps, optical alignment
|
In summary, precision stepper gearboxes offer significant advantages in terms of torque, resolution, and system stability. Sango manufactures precision gearboxes for stepper motors across NEMA 17, 23, and 34 frame sizes, covering planetary gear ratios from 3:1 to 100:1 with a lead time of 24 weeks and direct factory shipping.
Please feel free to contact us at any time for product selection advice or a quote.
Precision Engineering for Reliable PerformanceEach gearbox is crafted from precision-machined alloy steel and housed in anodized aluminum for corrosion resistance and durability. The use of planetary gearing and quality synthetic grease guarantees low backlash, high efficiency, and extended service life, making these gearboxes ideal for continuous duty cycle applications.
Versatile Compatibility and CustomizationDesigned to fit NEMA 17, NEMA 23, and NEMA 34 stepper motors, our gearboxes offer reduction ratios between 3:1 and 100:1. The input shaft can be customized to match any motor shaft, ensuring seamless integration across various setups. Voltage compatibility spans 12-48V stepper motors, and output torque reaches up to 400 Nm.
FAQ's of Precision Gearboxes For Stepper Motors:
Q: How do I install a precision gearbox with flange mount to my stepper motor?
A: Align the flange on the gearbox with the corresponding flange face on your stepper motor (NEMA 17, 23, or 34). Secure the gearbox using the mounting bolts provided, ensuring tight and accurate alignment for optimal torque transmission and low backlash performance.
Q: What types of environments are these gearboxes suitable for?
A: These gearboxes are designed to perform reliably in ambient temperatures ranging from -10C to +50C and are rated IP54 or higher, making them suitable for industrial environments where dust and moisture exposure are moderate but present.
Q: When should I consider using a low-backlash planetary gearbox?
A: Use a low-backlash planetary gearbox for applications where precision positioning, repeatability, and efficiency are critical-such as CNC machinery, robotics, and automated assembly lines.
Q: Where can these gearboxes be used in terms of motor and power requirements?
A: They are compatible with stepper motors in the NEMA 17, 23, and 34 size ranges, supporting voltages from 12V to 48V and rated power up to 1.5 kW, covering a broad spectrum of automation and motion control tasks.
Q: What is the benefit of lifetime lubrication with synthetic grease?
A: Lifetime lubrication with synthetic grease eliminates the need for routine maintenance, ensuring consistent performance, reduced downtime, and an extended service life of over 20,000 hours.
Q: How does the gear ratio affect the output speed of the gearbox?
A: The reduction ratio determines how much the input speed from the motor is reduced at the output shaft. A higher ratio means greater torque and lower output speed, allowing for flexible adaptation depending on application requirements.
Q: What is the process for customizing the input shaft to match a specific motor?
A: During ordering, specify the motor shaft dimensions and requirements. The manufacturer will then produce a compatible input shaft for seamless integration, ensuring efficient torque transfer and correct fitment.
