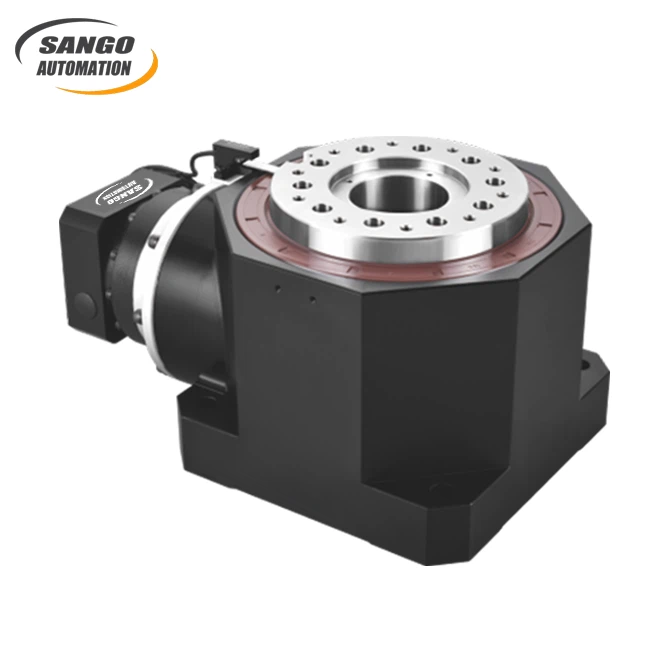

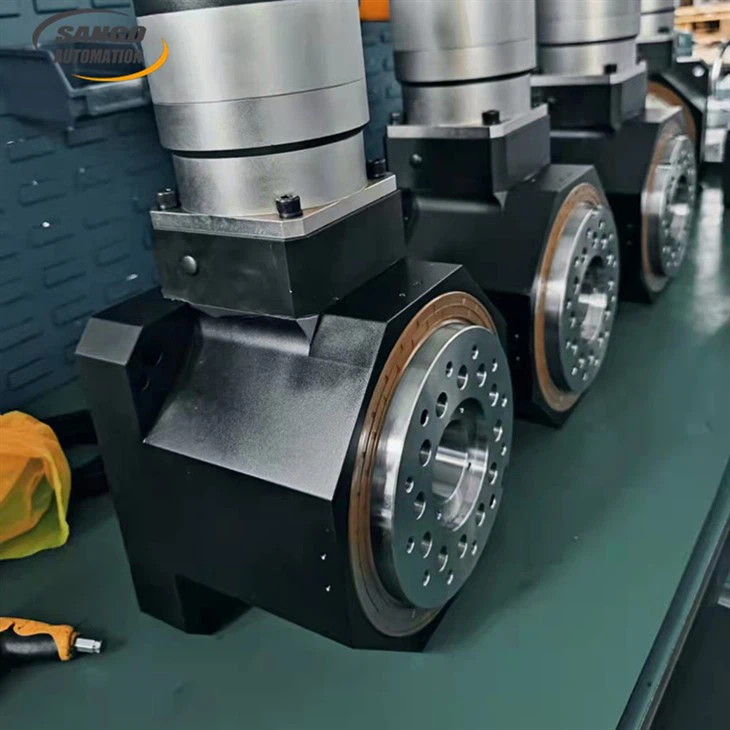

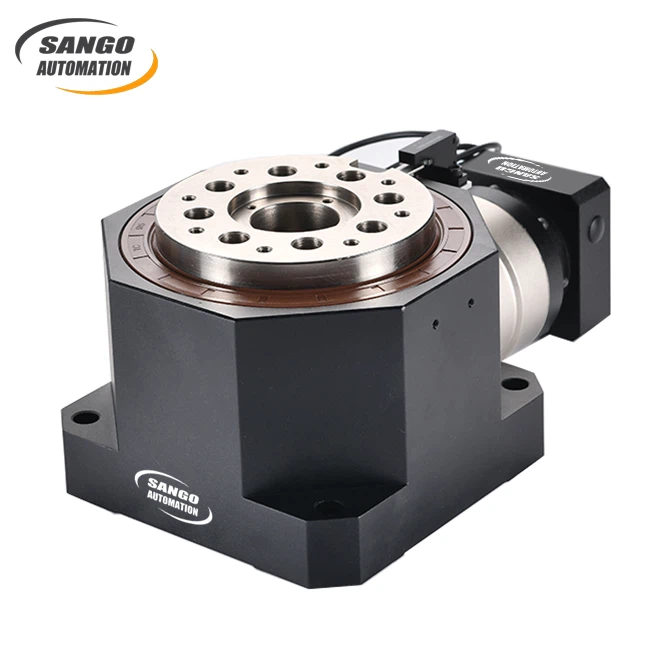

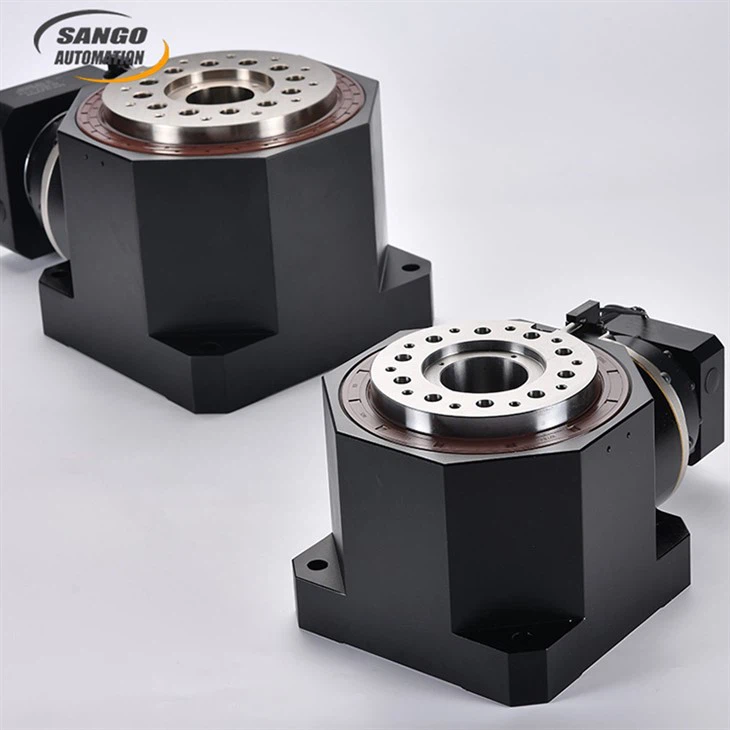

Right Angle Reducer

Price 30.0 USD ($)/ Unit

Get a Price/Quote

MOQ : 1 Unit

Right Angle Reducer Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Shenzhen

Supply Ability
10000 Units Per Month

Delivery Time
30 Days

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Africa, Western Europe, Middle East

Main Domestic Market
All India

About Right Angle Reducer

Sango Automation is a professional precision custom gear manufacturer. Since our establishment in 2010, we have accumulated more than ten years of specialized gear manufacturing experience. We have successfully provided customized right angle reducer solutions for high-end robot arm manufacturers and automated production lines in Germany, Canada, and Japan. Our commitment to using high-grade materials and rigorous testing has earned us a reputation for reliability, evidenced by our high customer repurchase rate. Whether you require a standard right angle reducer or a specialized high-torque variant, our engineering team leverages a decade of expertise to ensure your project's success.

Products Features

Compact 90 Configuration

The right angle reducer features a perpendicular drive design that allows the motor to be mounted at a 90-degree angle to the output shaft. This significantly reduces the overall machine footprint, making it an ideal solution for automated equipment with limited installation space where inline gearboxes cannot fit.

High Precision & Low Backlash

Utilizing precision-ground spiral bevel or worm gears, the right angle reducer maintains a standard backlash as low as 3 arc-min (depending on the model). This mechanical precision ensures stable torque transmission and highly accurate repetitive positioning in multi-station indexing applications.

High-Rigidity Internal Bearings

Each reducer is equipped with heavy-duty internal bearings-often cross-roller or tapered roller types-designed to handle significant axial and radial loads simultaneously. This robust internal support prevents shaft deflection under high-torque conditions, ensuring long-term operational stability.

Universal Motor Interface

The right angle reducer is designed with a flexible flange system compatible with all major brands of servo and stepper motors. By using standardized dimensions and exchangeable shaft bushings, it allows for a quick "plug-and-play" installation without the need for additional mechanical modifications.

Products Parameters and Drawings

Comparison Table of Right Angle Hollow Rotary Tables HRM130, HRM180, HRM225 and HRM260.

Model	HRM130-L1	HRM180-L1	HRM225-L1	HRM260-L1
Bearing structure		Cross roller bearing
Reduction ratio	i	15-30
Rated output torque	N.m	105-150	360-430	1000-1350	2200-2950
Output torque	N.m	3 Times rated torque
Positioning accuracy	arc-min	2
Repeated positioning accuracy	arc-sec	30
Allowable disk speed	rpm	200 Intermittent operation
Adapt to servo motor	W	200-400	750-1500	1000-3000	2000-5000
Suitable for stepping motor		57 Stepper	86-110 Stepper	110-130 Stepper	130-150 Stepper
Allowable axial load	N	7300	13500	19500	29600
Allowable radial load	N	7300	13500	19500	29600
Design load	Kg	50	150	480	1000
Allowable moment of inertia	N.m	50	110	220	750
Torsional rigidity	N.m/arcmin	25	45	80	175
Overturning moment	N.m	520	1420	2530	6300
Accuracy life	h	20000h Intermittent operation
Protectionlevel	IP	54
Lubrication method		Long-term lubrication
Installation method		Arbitrary
Concentricity of rotating platform	mm	0.01
Parallelism of rotating platform	mm	0.02	0.01	0.01	0.01
Transmission efficiency	%	95
Noise	db	57	63	67	67
Weight	kg	7	17	36	46
