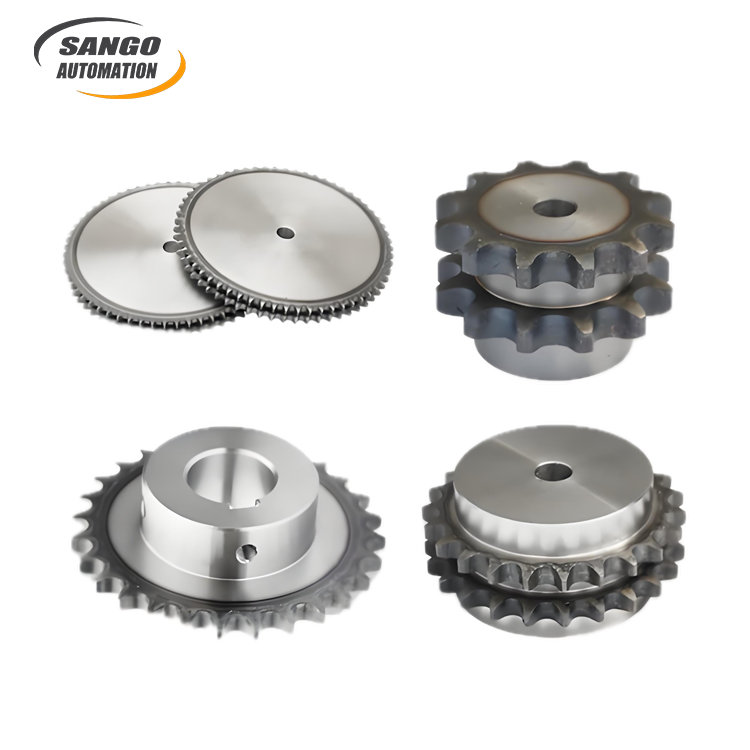

Sprocket Wheel

Sprocket Wheel Specification

Material
Steel

Processing Type
Other

Gear Tooth Profile
Other

Gearing Arrangement
Other

Sprocket Wheel Trade Information

Minimum Order Quantity
5 pieces

FOB Port
Shenzhen

Supply Ability
100000 Per Month

Delivery Time
30 Days

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Sprocket Wheel

Features of sprocket wheel

Relying on the advanced equipment of our gear factory and CNC machining center, we ensure that the sprocket wheels produced by Hansheng Automation have the following characteristics.

High Tooth Profile Precision

Our gear manufacturing capabilities meet ISO/DIN/GB Stage 5 standards. Our gear production center utilizes state-of-the-art gear shaping equipment, including Kashifuji rack gear shaping machines and Seibu wire-cut EDMs, to ensure precise meshing of the sprocket wheel with the chain, minimizing noise.

Dimensional Tolerances

Our precision turning and milling capabilities maintain dimensional accuracy to 0.005mm, guaranteeing the inner and outer diameters, thickness, and concentricity of the sprocket wheel.

High-Quality Alloy Steel

Hanshneg Automation typically uses 45# steel, C45 steel, stainless steel, and other alloys to ensure the mechanical strength, toughness, and wear resistance of our sprocket wheels.

Advanced Heat Treatment

As part of post-processing, we utilize specialized heat treatment processes such as high-frequency quenching to further enhance the surface hardness and wear resistance of the gear teeth.

Customized service

With our team of engineers and as a source factory, we have strong non-standard design and manufacturing capabilities. We can customize sprocket wheels with different modules, numbers of teeth, materials and other special structures according to your drawings and specific working conditions. In addition, we can also customize CNC machined parts, gears (helical gears, turbines, etc.), castings, etc.

Product Technical Parameters

Parameter Item	Specification Description
Product Name	Industrial Sprocket Wheel
Executive Standard	ISO, ANSI, DIN, GB (National Standard), etc.
Common Materials	45# (C45/S45C), 304 stainless steel, 316 stainless steel, cast iron, nylon, etc.
Sprocket Type	Type A (flat plate type), Type B (single-side hub type), Type C (double-side hub type), idle sprocket, tension sprocket, etc.
Number of Chain Rows	Single row (Simplex), double row (Duplex), triple row (Triplex) and multi-row
Number of Teeth Range	8 - 120 (If more than 120, please consult us)
Pitch Range	Cover all standard industrial chain pitches
Surface Treatment	Black oxide, galvanized, chrome plated, spray painting, high-frequency quenching
Hub Form	Standard keyway, taper bushing hole, QD hole, customized aperture
Custom Service	Accept non-standard customization according to customer drawings or samples

Application Areas

Currently, the majority of Hansheng Automation's sprockets are delivered to packaging machinery customers, such as sealers, labelers, and canning lines. However, sprocket applications extend beyond packaging machinery and include the following:

Agricultural machinery: Harvesters, seeders, and feed processing equipment

Food processing: Washing lines, baking equipment, and conveyor systems (stainless steel sprockets are often used)

Engineering and construction machinery: Hoists, mixers, and small excavators

Logistics and warehousing equipment: Sorting systems and racking drives

Textile and printing machinery
