About 5 Axis CNC Machining
Features Of Five-Axis Machining
Strong Processing Capacity
Through the rotation of the worktable or the angle adjustment of the spindle head, the hollowing of the workpiece, the multi-faceted special-shaped machining and the processing of complex curved surfaces can be realized, which cannot be achieved by other processing methods (four-axis machining cannot achieve hollowing machining, three-axis CNC machining can only achieve simple machining).
High Processing Accuracy
Triaxial machining requires multiple turnover clamping to complete the entire machining process, which will cause the cumulative machining error of the workpiece to be large. In five-axis CNC machining, the workpiece only needs to be clamped once, which can ensure that the overall machining accuracy tolerance is 0.01mm.
Dynamically Optimize The Vector Direction Of The Tool
By adjusting the feed angle of the tool relative to the workpiece surface in real time, the 5-axis CNC allows the cutting edge to contact the material at a more efficient tangential speed, reducing tool vibration, the risk of side edge impact, and surface contact marks, achieving a high surface finish (Ra < 0.8m) while also extending tool life.
The Implementation Method Of Five-Axis CNC Core Technology
Table-Table
In this method, the workpiece is mounted on a dual rotating table, and the spatial attitude of the workpiece is adjusted through the rotating table, and the tool makes a linear motion in the XYZ axis to complete the processing of the workpiece. Under light load conditions, the double rotary table can achieve repeatable positioning accuracy of 0.003mm.
Table-Head
The working mode of rotary table + swing head is the most common, this mode of table rotates around the Z axis (C axis), the spindle swings around the Y axis (B axis, stroke 110), the B axis is driven by a direct drive torque motor to eliminate the reverse backlash, but the spindle overhang swing will reduce the dynamic rigidity.
Head-Head
In the dual swing head mode, the table is fixed and the spindle adopts a telescopic electric spindle and integrates a double swing angle mechanism to achieve space orientation, with a hydraulic counterweight balance system to offset gravity torque.
Core difference comparison table
|
Key Indicators
|
Table-Table
|
Table-Head
|
Head-Head
|
|
Maximum Workpiece Weight
|
1.5 t
|
4 t
|
10 t
|
|
Spatial Accuracy
|
8m
|
12m
|
15m
|
|
Apply The Cutting Strategy
|
Finishing (mirror Ra0.2)
|
Semi-finishing-Finishing
|
Roughing-Semi-finishing
|
Application of 5-axis CNC Machining
The 5 axis CNC machining has a strong ability to process special-shaped surfaces, and is widely used in aerospace, medical equipment, automobile industry, shipbuilding industry and other fields.
|
Field
|
Specific Items
|
|
Aerospace
|
Turbine blades, blades, engine receivers, combustion chambers, aircraft structural parts, helicopter rotor hubs
|
|
Energy Sector
|
Steam turbine/gas turbine blades, wind turbine components
|
|
Medical Devices
|
Orthopedic implants, surgical instruments, endoscopic parts
|
|

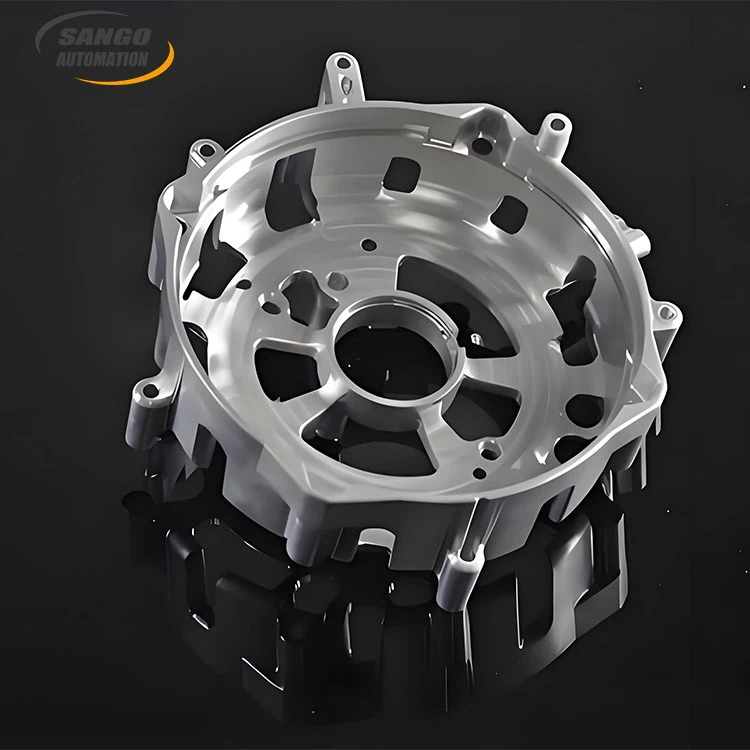

General Machinery & Industrial Equipment
|

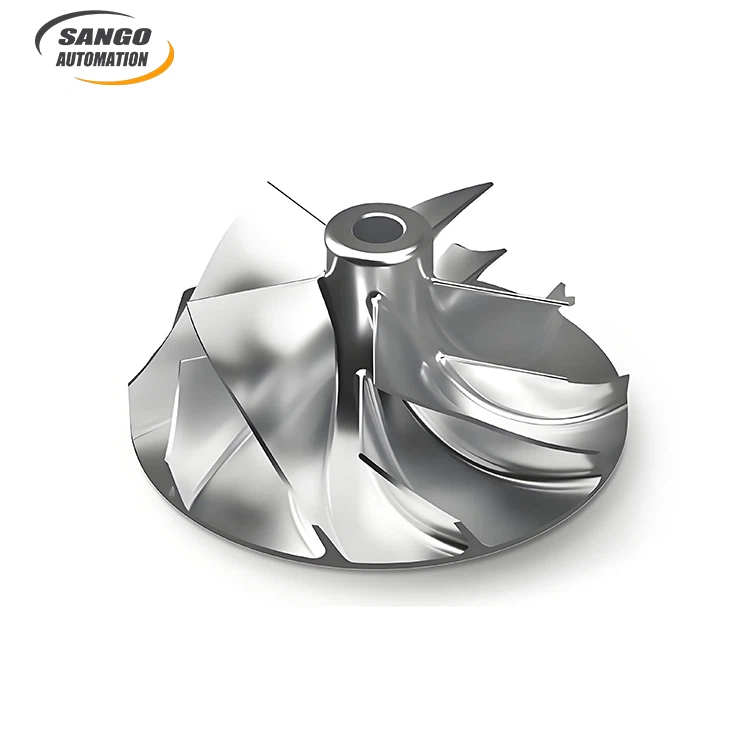

Pump/valve housings, compressor impellers/volutes, key robot components, complex fixtures
|
Precision Meets VersatilityExperience highly precise and versatile manufacturing with our 5 Axis CNC Machining services. Suitable for both metals and plastics, these machines ensure adaptability for diverse industrial uses, delivering reliable results for every project.
Trusted Solutions from Leading ProvidersAs a prominent distributor, exporter, manufacturer, supplier, and trader in India, we are committed to supplying 5 Axis CNC machines that meet international quality standards. With consistent support and competitive pricing, we are your trusted partner for industrial machining needs.
FAQ's of 5 Axis CNC Machining:
Q: How does 5 Axis CNC Machining benefit industrial manufacturers?
A: 5 Axis CNC Machining allows manufacturers to achieve complex geometries and precise detailing on both metal and plastic components, reducing multiple setups and enhancing productivity across various industrial applications.

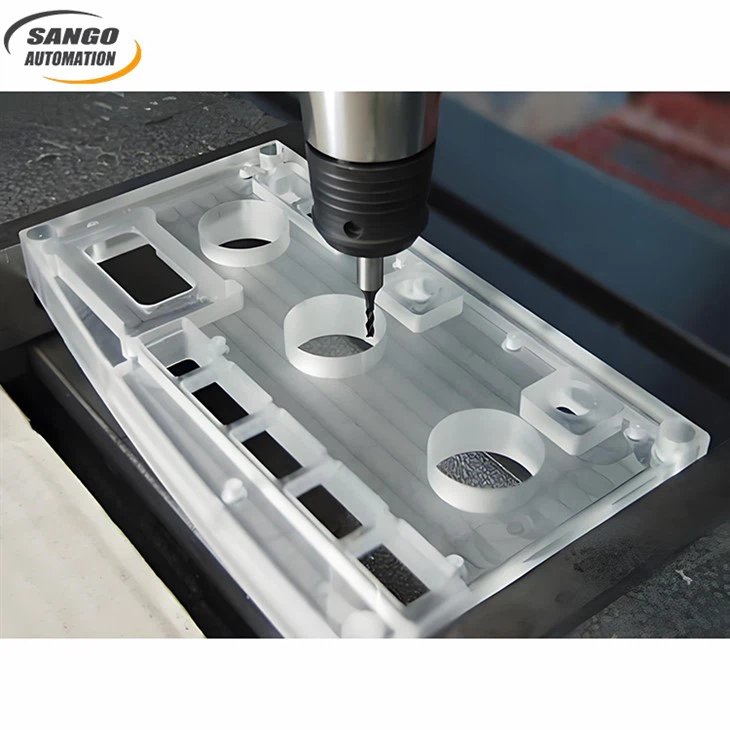

Q: What materials can be processed with these CNC machines?
A: Our 5 Axis CNC Machining services are capable of working with both metal and plastic materials, making them suitable for a wide variety of industrial projects that demand strength, precision, or intricate shapes.
Q: Where are your 5 Axis CNC machines distributed from?
A: Our products are distributed, exported, and supplied from India, supported by our strong presence as a manufacturer and trader in the local and international markets.
Q: When does the warranty coverage begin for these machines?
A: The one-year warranty period begins from the date of purchase, ensuring coverage against manufacturing defects or issues during this period.
Q: What is the process involved in 5 Axis CNC machining?
A: 5 Axis CNC machining involves using a computer-controlled machine that moves a tool or part along five different axes, enabling the production of intricate shapes and smooth finishes with high accuracy.
Q: How are these CNC machines typically used in an industrial setting?
A: They are utilized for manufacturing parts that require precise cuts and complex contours, such as components for aerospace, automotive, or medical devices. The machines allow for consistent quality and reduced manual intervention.
Q: What are the main features of your 5 Axis CNC machines?
A: These machines feature good quality construction, compatibility with standard size requirements, and the ability to handle both metals and plastics. They are designed for industrial usage and do not include remote control or full automation.
